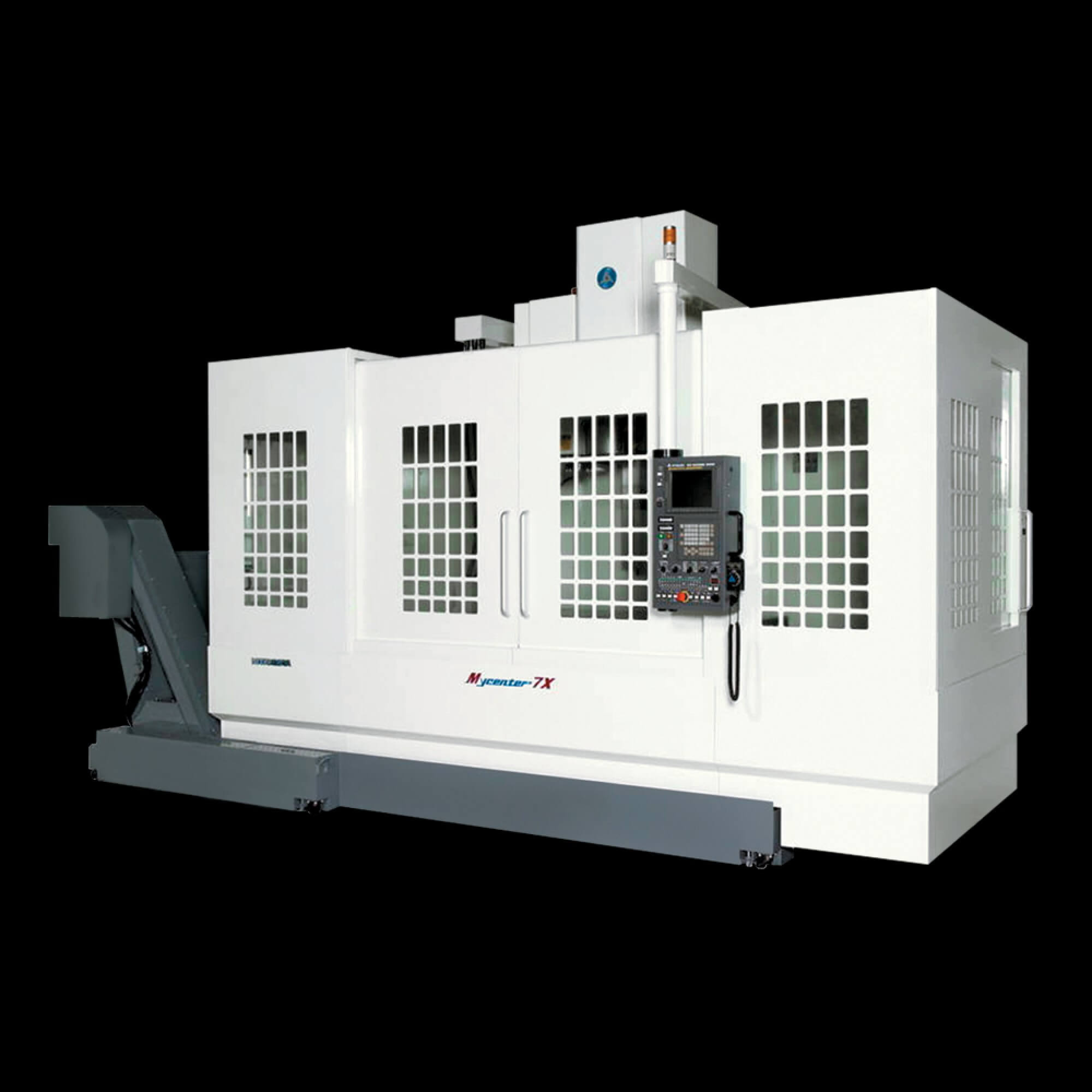

Mycenter-7X#50 Vertical Machining Center

Specifications
Table Size: 25,6” x 66,9” (650 x 1,700mm)
Travel (X,Y,Z): 60,2” x 25,6” x 27,0”
(1,530 x 650 x 686mm)
Spindle Taper: NST No. 40
Spindle Speed: 50~5,000rpm (20-10,000rpm als Option), 4-Step Gear Driven
Tool Storage Capacity: 30 Stk. (40, 60 als Option)
Tool Change Time (T-T/C-C): 2.5 Sec./8.5 Sec.
Rapid Feed (X, Y x  Z): 945ipm (24m/min)  x 787ipm (20m/min)
Power Requirement: 40KVA
Features

• Ideal for machining larger size parts and molds

• Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”

• Rigid Meehanite cast iron construction with solid box ways

• Choice of #40 or #50 taper spindles for maximum machining flexibility

• Standard 30-Tool ATC with 40 or 60 tools as available options

• Flexibility with the ability to add 4th/5th axis in the field

• Powerful geared spindles delivery high torque and high speeds for maximum machining flexibility
