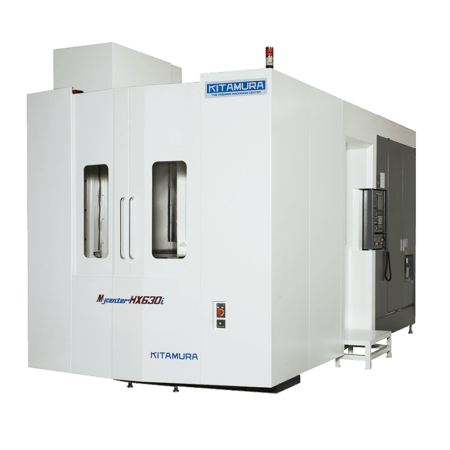

Mycenter-HX630iTGA

Horizontal Machining Center
Specifications
Table Size: 24.8” x 24.8” (630 x 630mm)
Travel (X, Y, Z): 41.34” x 33.46” x 35.43”
(1,000 x 800 x 820mm)
Spindle Taper: NST No. 50
Spindle Speed: 35~12,000rpm (20~8,000rpm Opt.) – Gear Drive, 4-Step
Tool Storage Capacity: 50 Pcs. (100,150,200 Opt.)
Tool Change Time
(T-T/C-C):
2.5 sec. /5.5 sec.
Rapid Feed (X,Y,Z)
Rapid Feed (B)
1969ipm (50m/min)
12,000deg/min
Power Requirement: 55KVA
Features

• Flexibility with the ability to add 5th axis in the field

• Patented twin ballscrew/twin servo motor driven axis drive system

• Full 4th axis rotary table with high resolution rotary scale

• RISC 64 bit processor with NURBS interpolation for higher processing speeds

• Highest grade meehanite cast iron construction with solid box ways

• Rigid 12,000rpm, gear driven, energy efficient, dual contact spindle

• Positioning accuracy: ±0.000078”/full stroke, Repeatability: ±0.000039”
