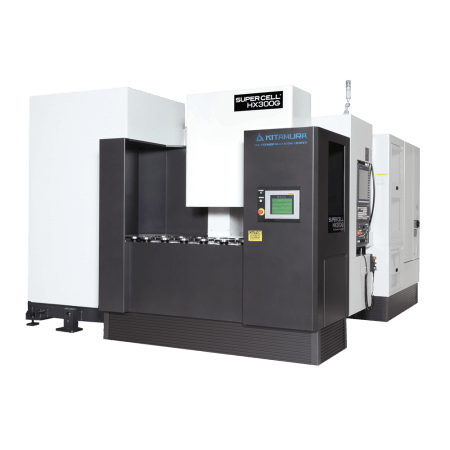

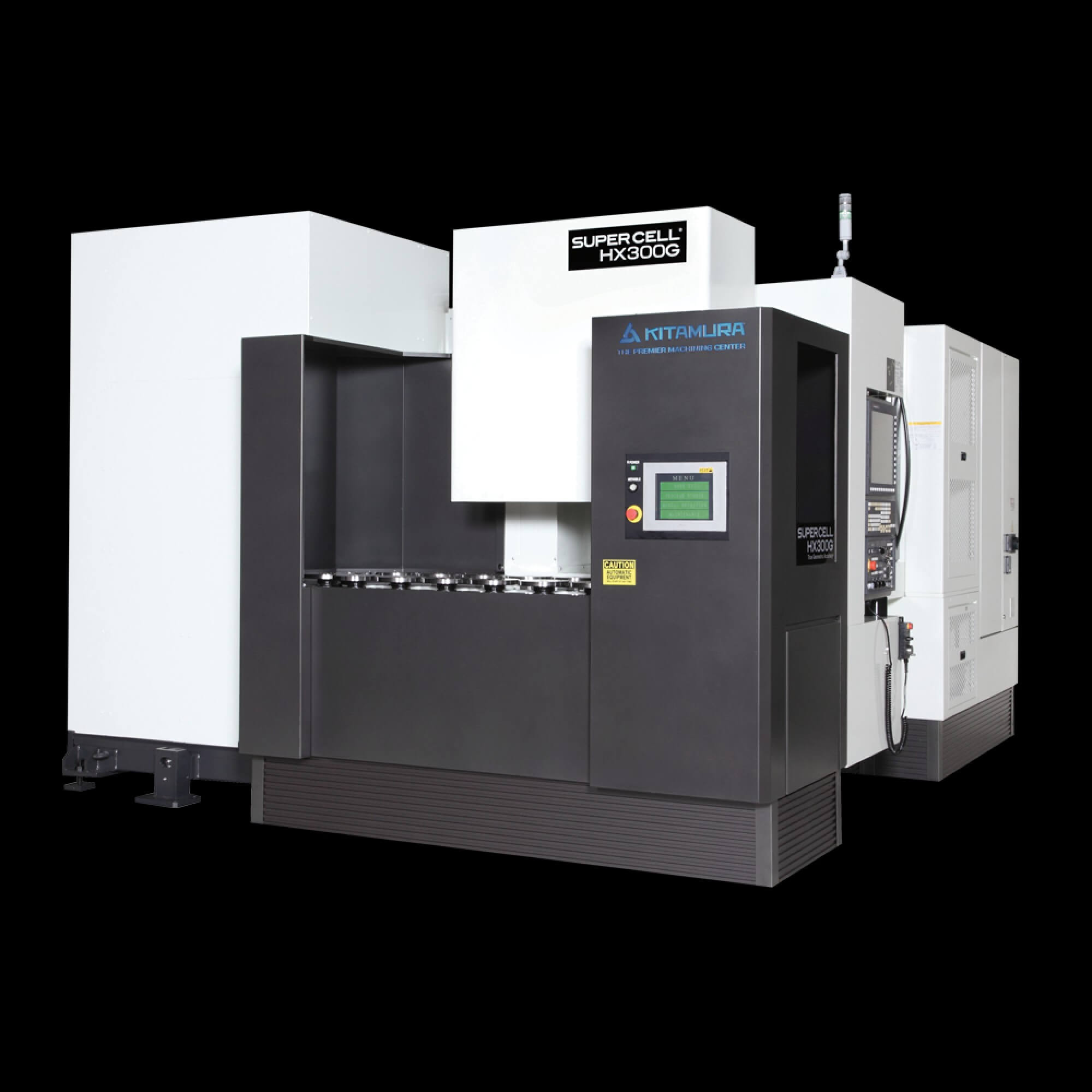

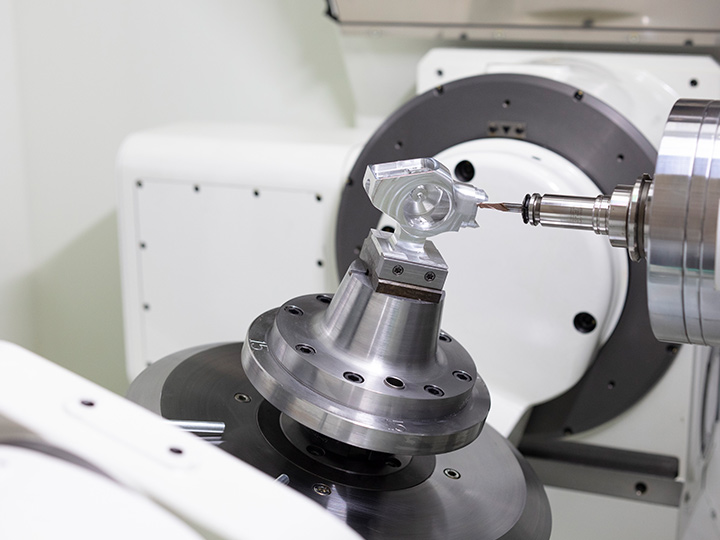

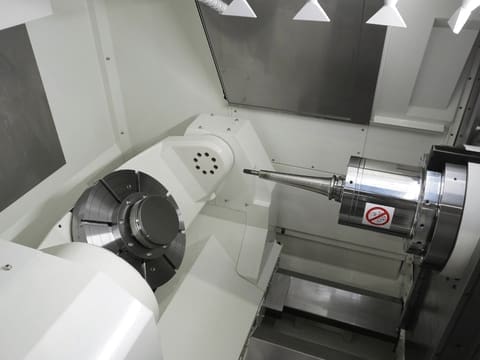

5-Axis Horizontal Machining Center
Table Size: 7.9” (200mm) Round
Travel (X, Y, Z): 18.1” x 20.1” x 18.1”
(460 x 510 x 460mm)
Travel (A, B): -120 to +30 deg. /0~360 deg.
Spindle Taper: NST No. 40
Spindle Speed: 200~20,000rpm
Tool Storage Capacity: 174 Pcs. (230,258,314 Opt.) Matrix Style
Tool Change Time
1.3 sec. /2.5 sec.
Rapid Feed
 (X, Y, and Z):
2,362ipm (60m/min)
Rapid Feed (A, B): 18,000 deg./min (50rpm)
Power Requirement: 55KVA

• Horizontal configuration allows flexibility for single set-up, unmanned machining

• Ultra high positioning Accuracy: ±0.000079”/full stroke, Repeatability: ±0.000039”

• Ideal for both unmanned one-off and high quantity production

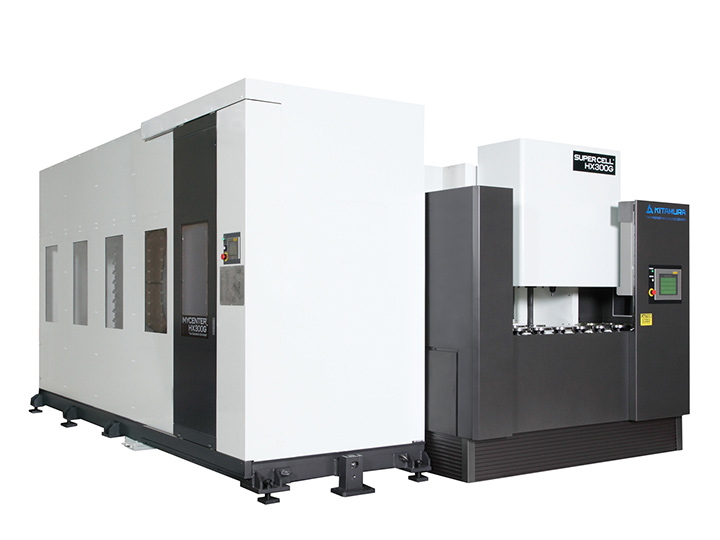

• Standard 20-station automatic pallet changer with up to 80 pallets available as an option

• Highest grade Meehanite cast iron construction with heavy duty roller linear guide way system

• High speed, built-in, dual contact 20,000rpm spindle

• Work handling system reduces pallet load & unload time, allowing for just-in-time operation
