Specifications

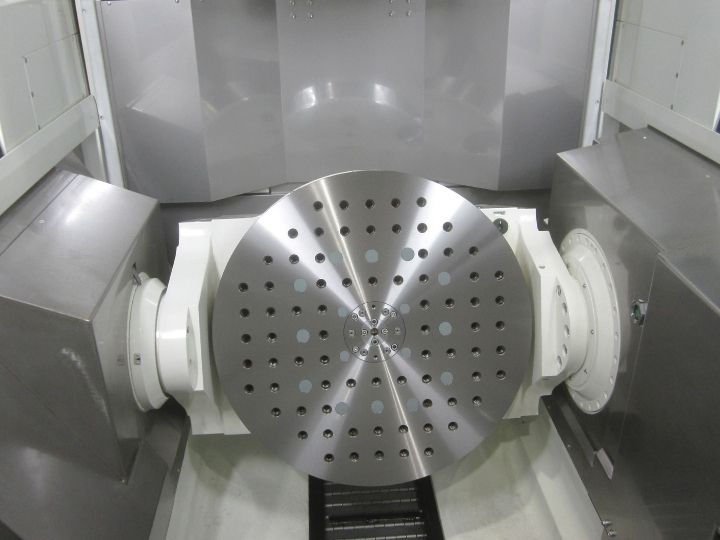

| Table Size: |
24.8”
round (630mm dia.) |
| Travel (X, Y, Z): |
32”
x 29.3” x 19.7” (815 x 745 x 500mm) |
| Travel (A, C): | -120~+30 deg. /0~360 deg. |
| Spindle Taper: | NST No. 40 |
| Spindle Speed: | 20~20,000rpm |
| Tool Storage Capacity: | 50 Pcs. (100 Opt.) |
| Tool Change Time (T-T/C-C): | 2.5 Sec. /5.0 Sec. |
| Rapid Feed (X, Y, Z): | 1969ipm (50m/min) X & Y, 984ipm (25m/min) Z |
| Rapid Feed (A, C): | 2,000 deg. /min, 6,000 deg. /min |
| Power Requirement: | 45KVA |
Features
• Ideal for ultra-high precision simultaneous 5-axis machining
• Positioning Accuracy: ±0.000039” Full Stroke, Repeatability: ±0.00002”
• Sliding overhead door allows for easy workpiece loading/unloading
• Powerful 4-step geared spindle delivers high torque and high speed for maximum machining flexibility
• Linear scale feedback on all axes, A & B axis rotary scales
• Highest grade meehanite cast iron construction with solid box ways
