Bridgecenter-8G #50

Double Column 3-Axis Machining Center

Kitamura Bridgecenter-8G #50 double column vertical machining centers are engineered for precision when it comes to large, heavy workpieces—delivering the strength for heavy-duty mold cutting and the accuracy needed for high-tolerance part machining.

Specifications

Table Size
(900 x 2500mm) 35.4″ x 98.4″
Travel (X, Y, Z)
(2032 x 1095 x 710mm) 80″ x 43.1″ x 28″
Spindle Taper
NST No. 50 (HSK-A100 Opt.)
Spindle Speed
35-12,000 min‾¹, 4-Step Gear Driven
Tool Storage Capacity
40 Pcs. – 60, 80 Tools Optional
Rapid Feed (X,Y,Z)
24m/min (945ipm)
Power Requirement
45KVA, 200v AC, 3 Phase

Product Detail

Kitamura Bridgecenter Double Column Machining centers are ideal for a wide spectrum of applications – from heavy-duty cutting of molds to high accuracy machining of high-tolerance parts. Available in various sizes spindle configurations to meet your large part machining requirements.

Kitamura’s Bridgecenter-8G #50 high-precision, double column vertical machining center offers an extra-long Y-axis travel of 1,095mm (43.1”) in combination with a large 2,032mm (80”) X-axis travel taking up only approximately 136.6” x 230.9” (WxD) of floor space.  A #50, 12,000rpm 4-step geared spindle offers the versatility needed in the heavy duty cutting of molds to the high-speed, high accuracy cutting required for high precision, intricate parts. Guaranteed high level accuracies make the  Bridgecenter-8G #50 is the perfect machine for large, long parts that require a wider machining area, most often associated with the Die Mold, Aerospace and Defense Industries.

Uniquely Intuitive User Focused CNC Technology

The Arumatik-Mi control’s unique blend of advanced touch-screen icon driven and familiar conventional control technologies make this the CNC of the future. It is easy to use, fully customizable and is loaded with technology to perfect and simplify the user-machine experience.

Learn More

Find a Dealer Near You

Locate trusted experts nearby with just a click!

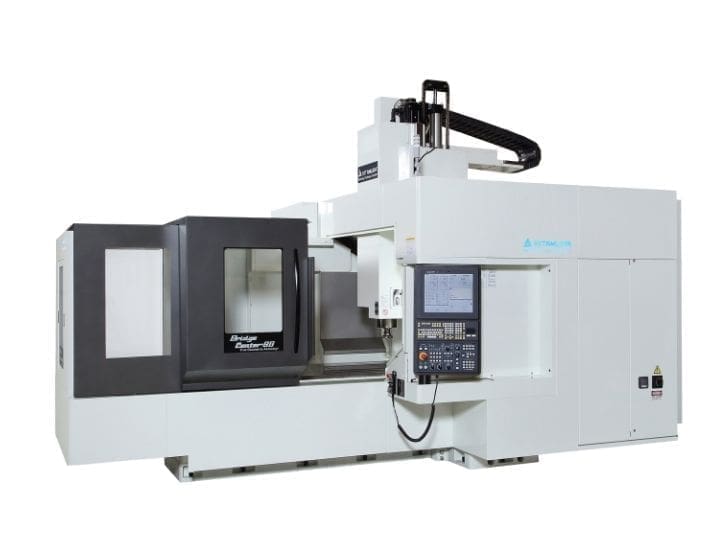

Kitamura Bridgecenter 8G CNC machine with an enclosed workspace and control panel.

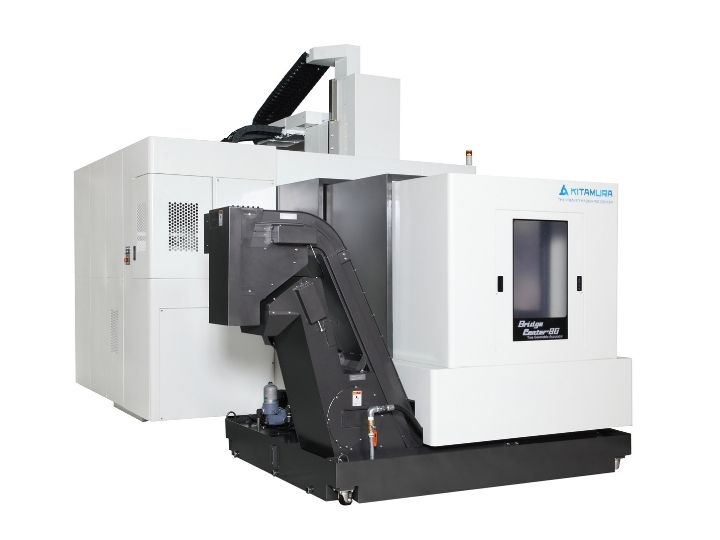

Kitamura Bridgecenter 8G CNC machine with an enclosed workspace and chip conveyor system.

Productivity Enhancing Features

  • Ideal for parts requiring heavier cutting loads and higher levels of precision and accuracy. Excellent for die/mold applications.
  • Positioning accuracy ±0.002mm (±0.000079”)/Full stroke, Repeatability ±0.001mm (±0.000039”)
  • Rigid Meehanite cast iron construction with induction hardened solid box ways
  • #50, high speed, heavy duty 12,000rpm, 4-step geared, dual contact spindle
  • Double column design with patented triangular crossbeam provides expansive work envelope and superior rigidity when compared with C-frame style machines
  • Linear scale feedback in X,Y,Z axes
  • Space saving and compact, the Bridgecenter-8G#50 measures only 3,494 x 5,86mm (137.6” x 230.9”) on your floor!
  • 7,700Lb table capacity allows for the machining of larger and heavier workpieces
