Mycenter-3XVTII

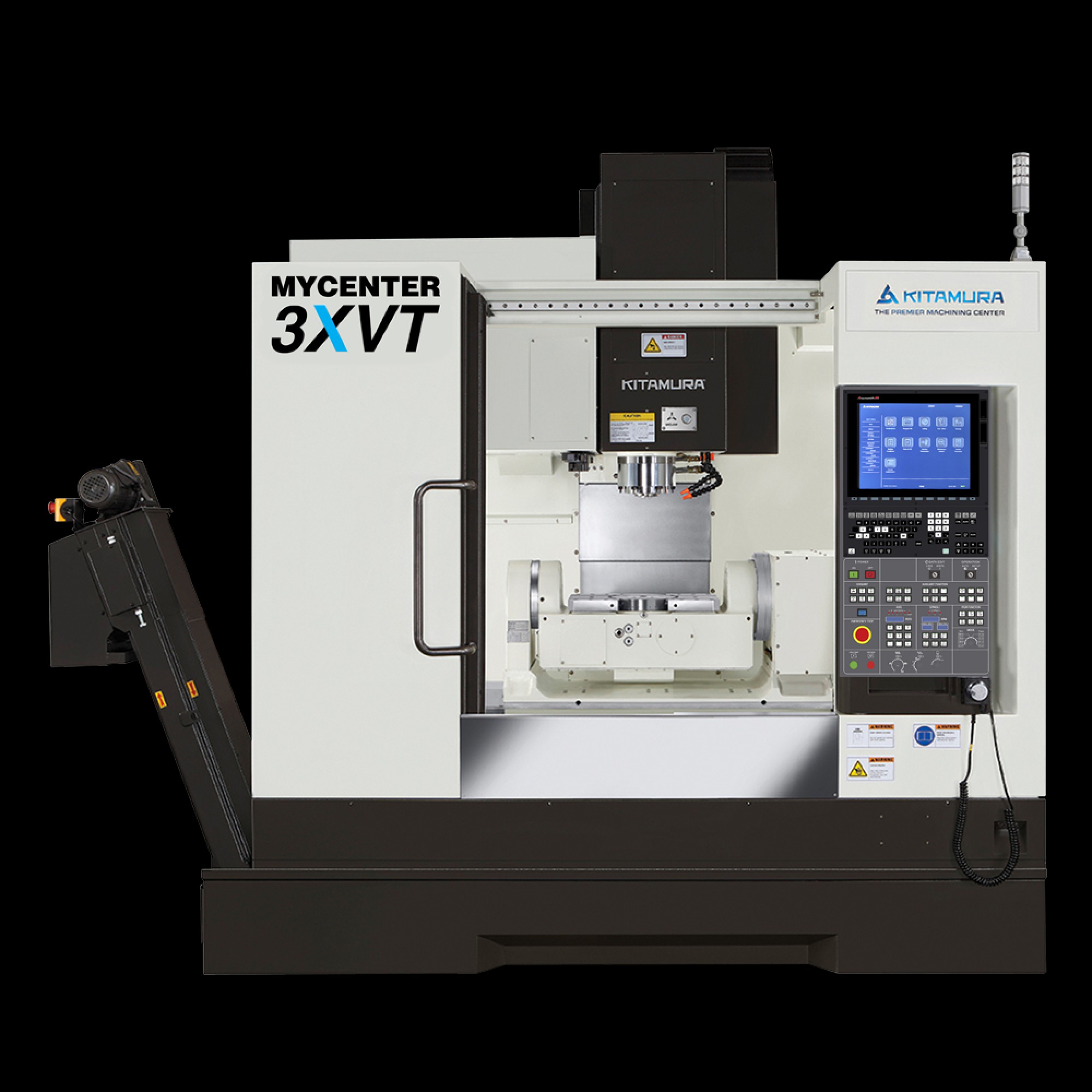

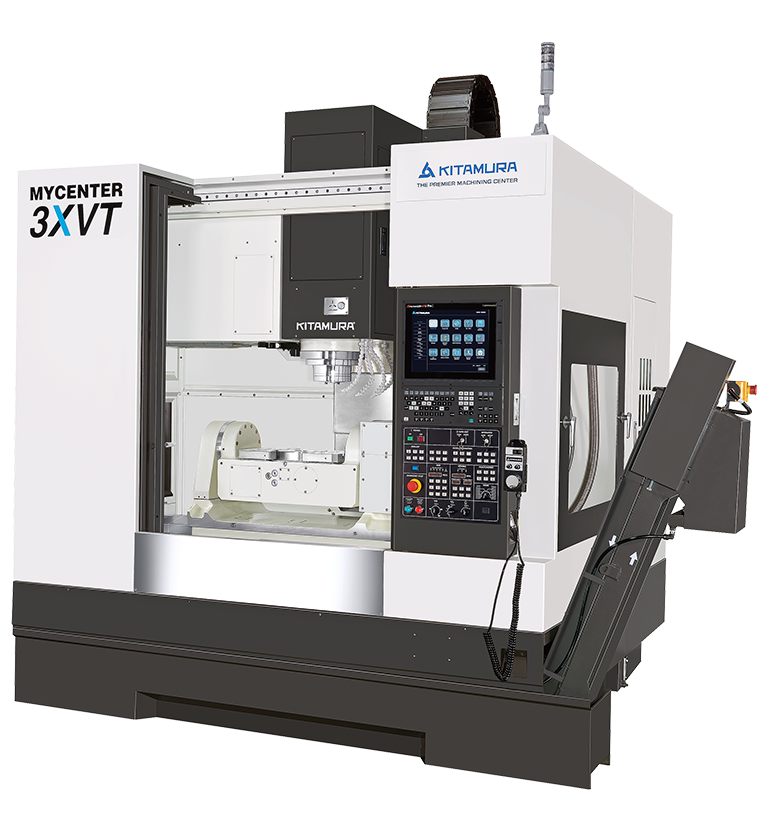

Mycenter 3XVIIT machine.

Vertical 5-Axis Machining Center

The Mycenter-3XVTII 4+1 5-axis vertical machining center delivers enhanced accuracy and efficiency when machining parts with complex angles and surfaces. Its spacious work envelope and compact footprint make it an ideal choice for job shops looking to maximize performance in limited space.

Navigate to the Specifications

Specifications

Rotary Table Size
Ø220mm (Ø8.7″)
w/Full Table Length:(300 x 500mm) 11.8″ x 19.7″
Travel (X, Y, Z)
(780 x 510 x 439mm) 30.7″ x 20.1″ x 17.3″
Travel (A, C)
160° (-120 to +40°), 0 to 360°
Spindle Taper
NST No. 40
Spindle Speed
50-15,000 min‾¹
Tool Storage Capacity
40 Pcs.
Rapid Feed (X,Y,Z)
48m/min (1,890ipm)
Rapid Feed (A, C)
25 min‾¹ (9,000 deg/min), 33.3 min‾¹ (12,000 deg/min)
Power Requirement
40KVA, 200v AC, 3 Phase

Product Detail

Engineered for precision and versatility, the Mycenter-3XVTII 4+1 5-axis vertical machining center offers exceptional performance at an unbeatable value. Built with a rigid structure, integrated trunnion table and a high capacity 40-Tool ATC, this machine is built to productively machine complex part geometries with a high degree of accuracy.  Expansive table access simplifies workpiece load/unload and the powerful 41HP 15,000rpm spindle stands up to rigorous cuts in the toughest of materials.

The easy-to-use Arumatik-Mi Pro CNC comes standard with advanced 5-axis machining technologies built in for all your complex surface machining requirements, ensuring smooth operation.

control machine white and red logo.

Uniquely Intuitive User Focused CNC Technology

The Arumatik-Mi control’s unique blend of advanced touch-screen icon driven and familiar conventional control technologies make this the CNC of the future. It is easy to use, fully customizable and is loaded with technology to perfect and simplify the user-machine experience.

Learn More

Find a Dealer Near You

Locate trusted experts nearby with just a click!

Locate Now

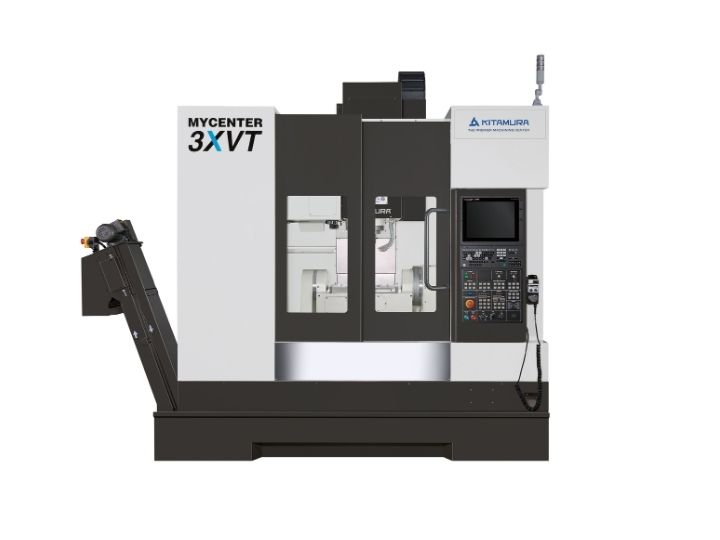

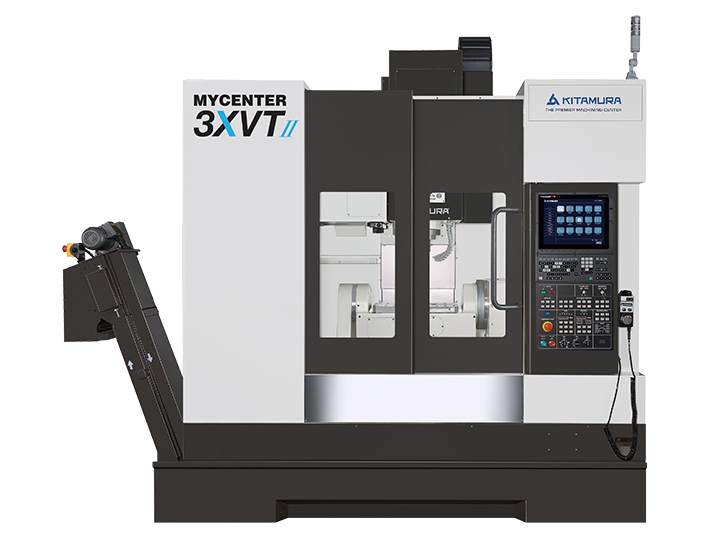

Kitamura Mycenter 3XVT CNC machine with an enclosed workspace and control panel.

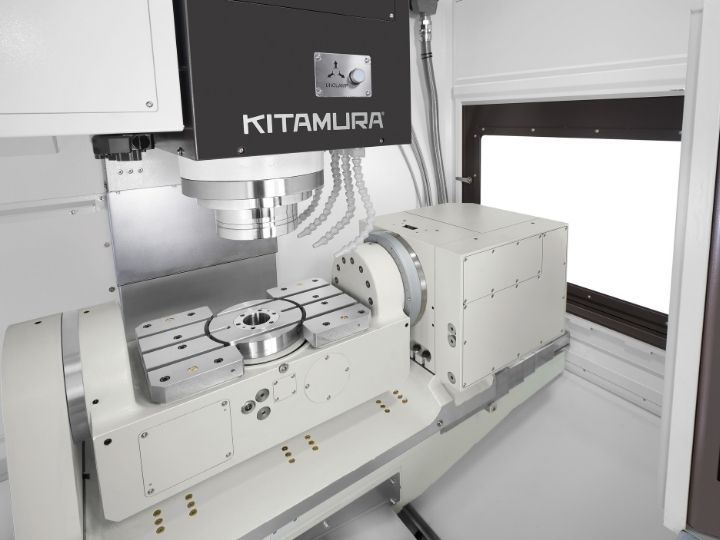

Kitamura CNC machine interior with a precision rotary table and spindle.

Productivity Enhancing Features

  • Built-In 4th/5th axis trunnion table allows for the machining of multiple surfaces in one set-up
  • High speed rapids of 48m/min (1,890ipm) on X,Y,Z axes boosts throughput
  • Rigid solid Meehanite cast construction with THK heavy duty cross linear guide ways
  • IAC System 1 thermal compensation system
  • High speed, powerful 15,000rpm, built-in, 41HP, dual contact spindle
  • Class leading high capacity 40 tool ATC #40
  • Standard base wash system internal chip augers and scraper type chip conveyor
  • High speed processing Arumatik-Mi Pro control
