Mycenter-3XVII

Vertical 3-Axis Machining Center

Compact and precise, the Mycenter-3XVII vertical machining center is built for tight spaces without compromising performance. Expect high-level accuracies, rock-solid durability, and long-term reliability

Specifications

Table Size

(500 x 860mm) 19.7″ x 33.9″

Travel (X, Y, Z)

(760 x 510 x 510mm) 29.9″ x 20.1″ x 20.1″

Spindle Taper

NST No. 40

Spindle Speed

50~15,000 min‾¹

Tool Storage Capacity

30 Pcs.

Tool Change Time
(T-T/C-C)

2.2 Sec. /4.2 Sec. Minimum

Rapid Feed (X,Y,Z)

52m/min (2,047ipm) x 42m/min (1,890ipm)

Power Requirement

40KVA, 200v AC, 3 Phase

Product Detail

Compact power redefined: The Mycenter-3XVII 30″ x 20″ ultra-compact vertical machining center delivers exceptional precision and reliability. Featuring a high-speed 41HP, 15,000rpm 40-taper, dual contact spindle this machine delivers unparalleled cutting performance on a wide range of materials. Standard 30-tool capacity ensures seamless operation, while the advanced Arumatik-Mi Pro CNC offers up to 16X faster processing speeds compared to conventional controls. Designed for quality and precision at an extremely affordable price point, this machine proves that small size doesn’t mean small performance.

Uniquely Intuitive User Focused CNC Technology

The Arumatik-Mi control’s unique blend of advanced touch-screen icon driven and familiar conventional control technologies make this the CNC of the future. It is easy to use, fully customizable and is loaded with technology to perfect and simplify the user-machine experience.

Learn More

Find a Dealer Near You

Locate trusted experts nearby with just a click!

Locate Now

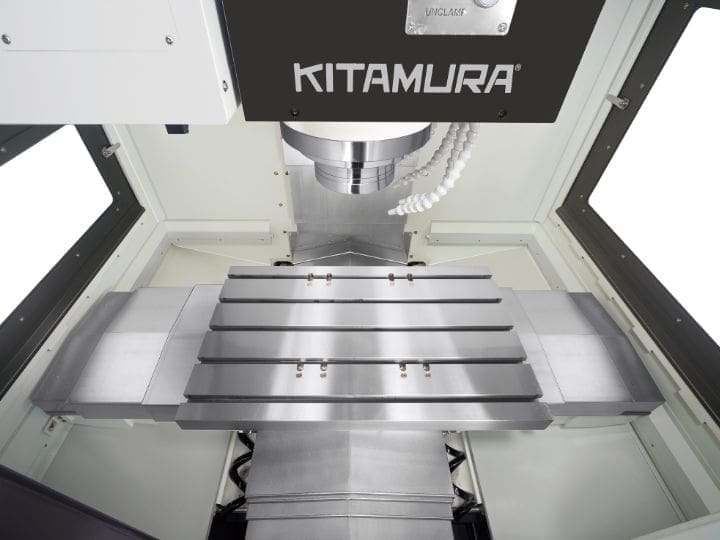

Kitamura CNC machine workspace with a vertical spindle and metal worktable.

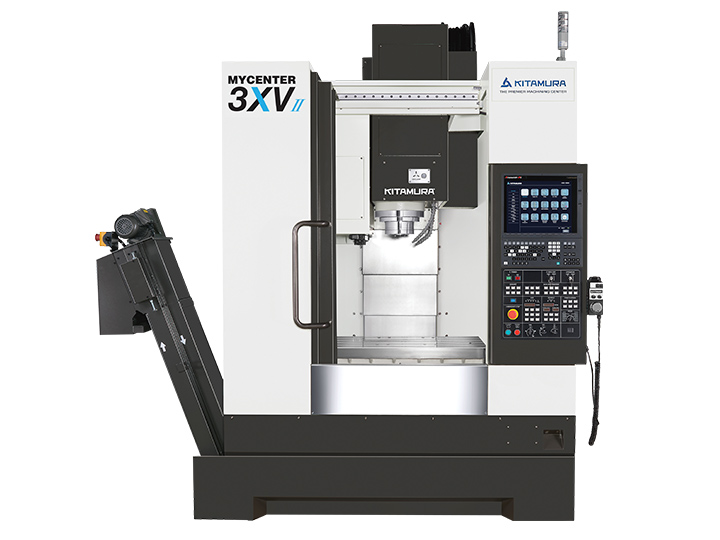

Kitamura Mycenter 3XVII CNC machine with an enclosed workspace and control panel.

Productivity Enhancing Features

Ideal for machining small to medium sized work pieces
Large work envelope housed within a uniquely compact footprint
Positioning Accuracy: ±0.002mm (±0.000079”)/Full Stroke,
Repeatability ±0.001mm (±0.000039”)
IAC System 1 thermal compensation system

Ultra-high-speed processing Arumatik-Mi Pro CNC offers up to 16 x faster processing speeds
Powerful #40, 41HP, 15,000rpm built-in spindle offers high speeds and heavy-duty cutting capabilities
High capacity 30 tool ATC
Set & inspect on machine probing app ready to use with Renishaw probe system
