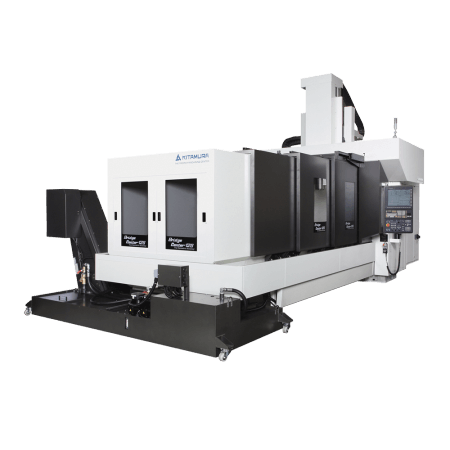

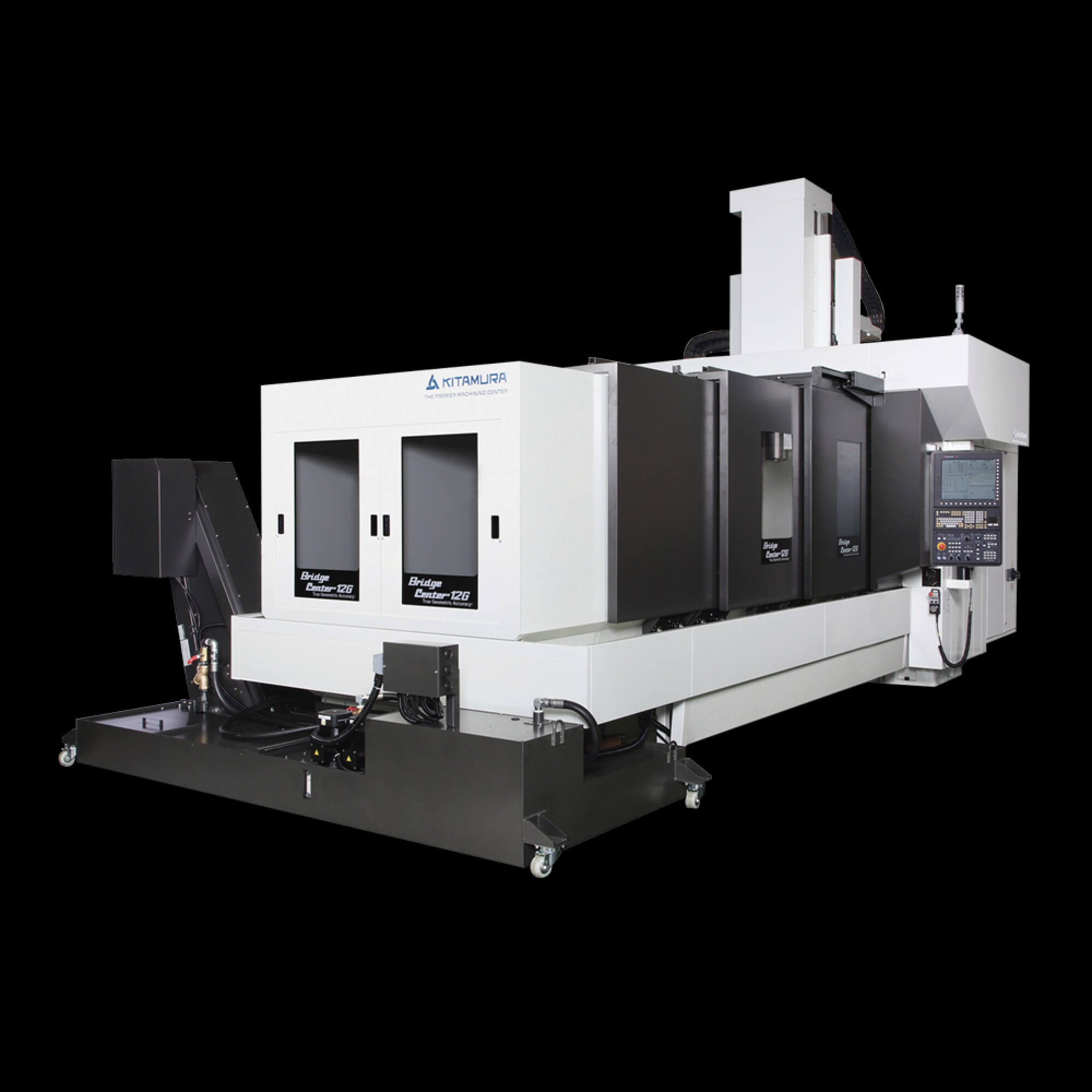

Bridgecenter-12G

Double Column 3-Axis Machining Center

The Bridgecenter-12G double column vertical machining center is built for high-precision machining of oversized, heavy components. It’s perfectly suited for everything from heavy-duty mold cutting to ultra-accurate machining of tight-tolerance parts.

Specifications

Table Size

(1370 x 3500mm) 53.9″ x 137.8″

Travel (X, Y, Z)

(3050 x 1615 x 800mm) 120.1″ x 63.6″ x 31.5″

Spindle Taper

NST No. 50 (HSK-A100 Opt.)

Spindle Speed

35-12,000 min‾¹, 4-Step Gear Driven

Tool Storage Capacity

40 Pcs. – 60, 80 Tools Optional

Rapid Feed (X,Y,Z)

24m/min (945ipm)

Power Requirement

50KVA, 200v AC, 3 Phase

Product Detail

The Bridgecenter-12G Double Column Vertical Machining Center offers an expansive work envelope in combination with a table load capacity of up to 6,000kg (13,227Lbs) for heavy duty cutting of molds to the cutting of larger parts requiring higher precision, accuracy and speed. Table size is an ample 1,370mm (53.9”) x 3,500mm (137.8”) with an extra-long X travel distance of 3,050mm (120.1”) making this machine the perfect companion for Aerospace, Defense and Mold/Die applications.

Exceptional precision with positioning accuracy of +/-0.002mm (+/-0.000079”)/full stroke and repeatability of +/-0.001mm (+/-0.000039”) – The Bridgecenter-12G uses super-finish, ground-hardened solid box ways on all axes, delivering outstanding accuracy in full stroke positioning and repeatability. A 12,000rpm 4-step gear driven dual contact spindle structure offers the versatility for roughing with fine-finish capabilities in a single set-up on a variety of materials from light to heavy duty cutting.

Uniquely Intuitive User Focused CNC Technology

The Arumatik-Mi control’s unique blend of advanced touch-screen icon driven and familiar conventional control technologies make this the CNC of the future. It is easy to use, fully customizable and is loaded with technology to perfect and simplify the user-machine experience.

Learn More

Find a Dealer Near You

Locate trusted experts nearby with just a click!

Locate Now

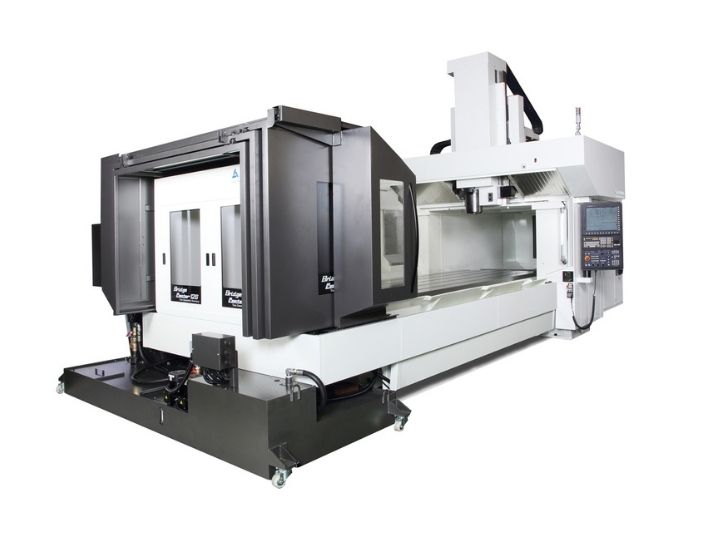

Kitamura Bridgecenter 12G CNC machine with an enclosed workspace and control panel.

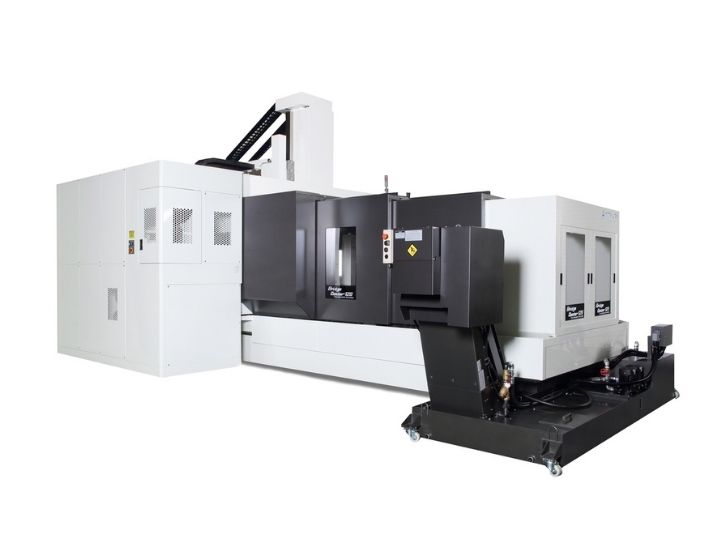

Kitamura Bridgecenter 12G CNC machine with an enclosed workspace and auxiliary systems.

Productivity Enhancing Features

120” extended X-axis stroke offers flexibility in large part processing that requires increased levels of rigidity and higher levels of precision and accuracy
Positioning accuracy ±0.002mm (±0.000079”)/Full stroke, Repeatability ±0.001mm (±0.000039”)
Rigid Meehanite cast iron construction with induction hardened solid box ways
#50, high speed, heavy duty 12,000rpm, 4-step geared, dual contact spindle

Patented double column bridge type design provides an expansive work envelope and superior rigidity
Linear scale feedback in X,Y,Z axes
Ultra-high speed and high precision SSS (Super Smoot Surface) control with 8,190 block look ahead speeds
13,300Lb table capacity provides added benefits for roughing and finishing of large cavities and cores in the die/mold industry
