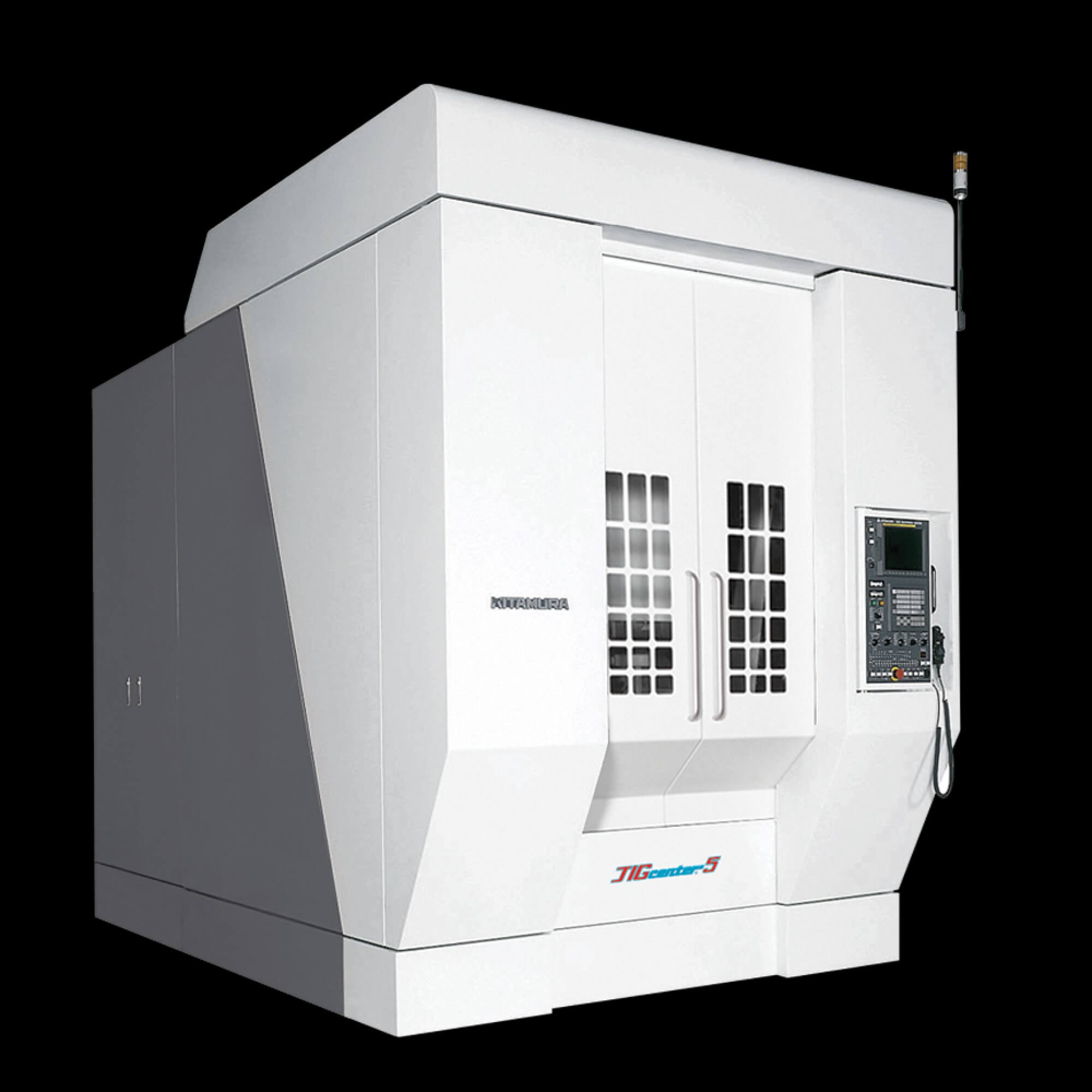

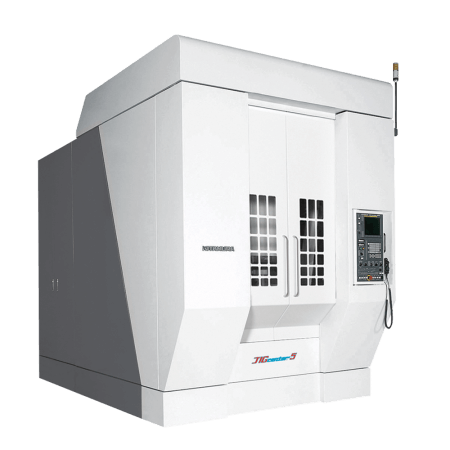

Jigcenter-5G

Vertical 3-Axis Jig Borer

The box-way, Jigcenter-5G 3-axis Jig Borer delivers the rigidity and ultra-high precision needed for fast, accurate machining of tight-tolerance geometries.

Specifications

Table Size

(780 x 1200mm) 30.7″ x 47.2″

Travel (X, Y, Z)

(815 x 745 x 500mm) 32.1″ x 29.3″ x 19.7″

Spindle Taper

NST No. 40 (HSK-A63 Opt.)

Spindle Speed

20-20,000 min‾¹, 4-Step Gear Driven

Tool Storage Capacity

50 Pcs. – 100 Tools Optional

Rapid Feed (X,Y,Z)

25m/min (984ipm)

Power Requirement

45KVA, 200v AC, 3 Phase

Product Detail

Ideal for milling and boring complex parts requiring a high degree of accuracy.

The Jigcenter-5 Vertical Jigborer provides not only ultra-high precision and ultra high-speed machining performance, but also the power needed for high torque cutting. The Jigcenter-5 guarantees positioning accuracy of ±0.001mm (±0.000039” Full Stroke) and repeatability of ±0.0005mm (±0.00002”) with fine pitch (8mm) Ballscrews and the aid of Kitamura’s exclusive standard linear scale feedback system on all axes. Ballscrew Cooling System and Intelligent Advanced Control (IAC System 1) are also standard to ensure the stabilization of accuracy while the dynamic double column construction allows the Y-axis to be fully supported throughout its entire movement, full stroke.

Uniquely Intuitive User Focused CNC Technology

The Arumatik-Mi control’s unique blend of advanced touch-screen icon driven and familiar conventional control technologies make this the CNC of the future. It is easy to use, fully customizable and is loaded with technology to perfect and simplify the user-machine experience.

Learn More

Find a Dealer Near You

Locate trusted experts nearby with just a click!

Locate Now

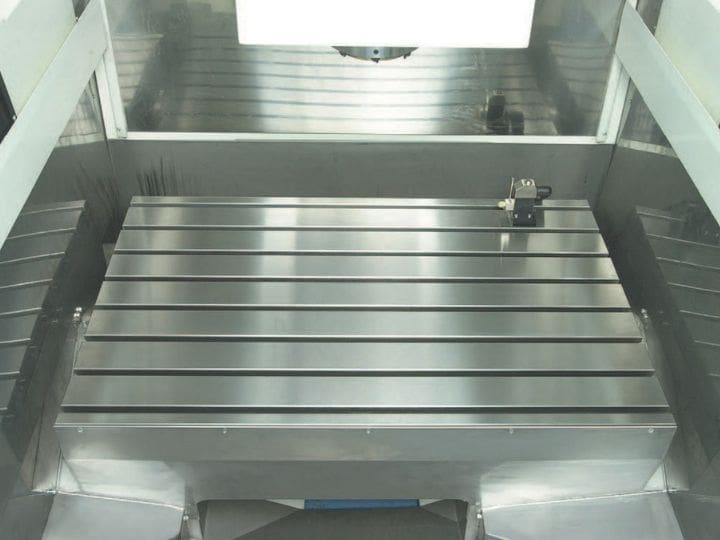

Large precision-machined metal table inside a JigCenter machining system.

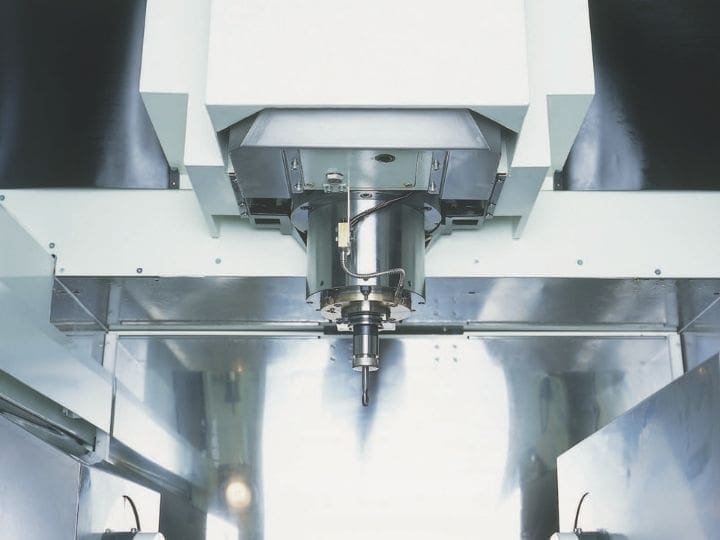

Close-up of a high-precision spindle inside a JigCenter machining system.

Productivity Enhancing Features

Ideal for ultra-high precision simultaneous 3-axis machining
Positioning accuracy ±0.001mm (±0.000039”)/Full stroke, Repeatability ±0.0005mm (±0.00002”)
Rigid Meehanite cast iron construction with induction hardened solid box ways
#40, high speed, heavy duty 20,000rpm, 4-step geared, dual contact spindle

Patented double column bridge type design provides an expansive work envelope and superior rigidity
Linear scale feedback in X,Y,Z axes
Ultra-high speed and high precision SSS (Super Smoot Surface) control with 8,190 block look ahead speeds
Ballscrew cooling system and IAC System 1 Thermal Comp system
