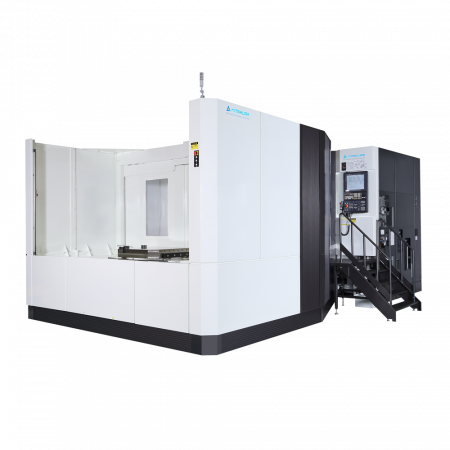

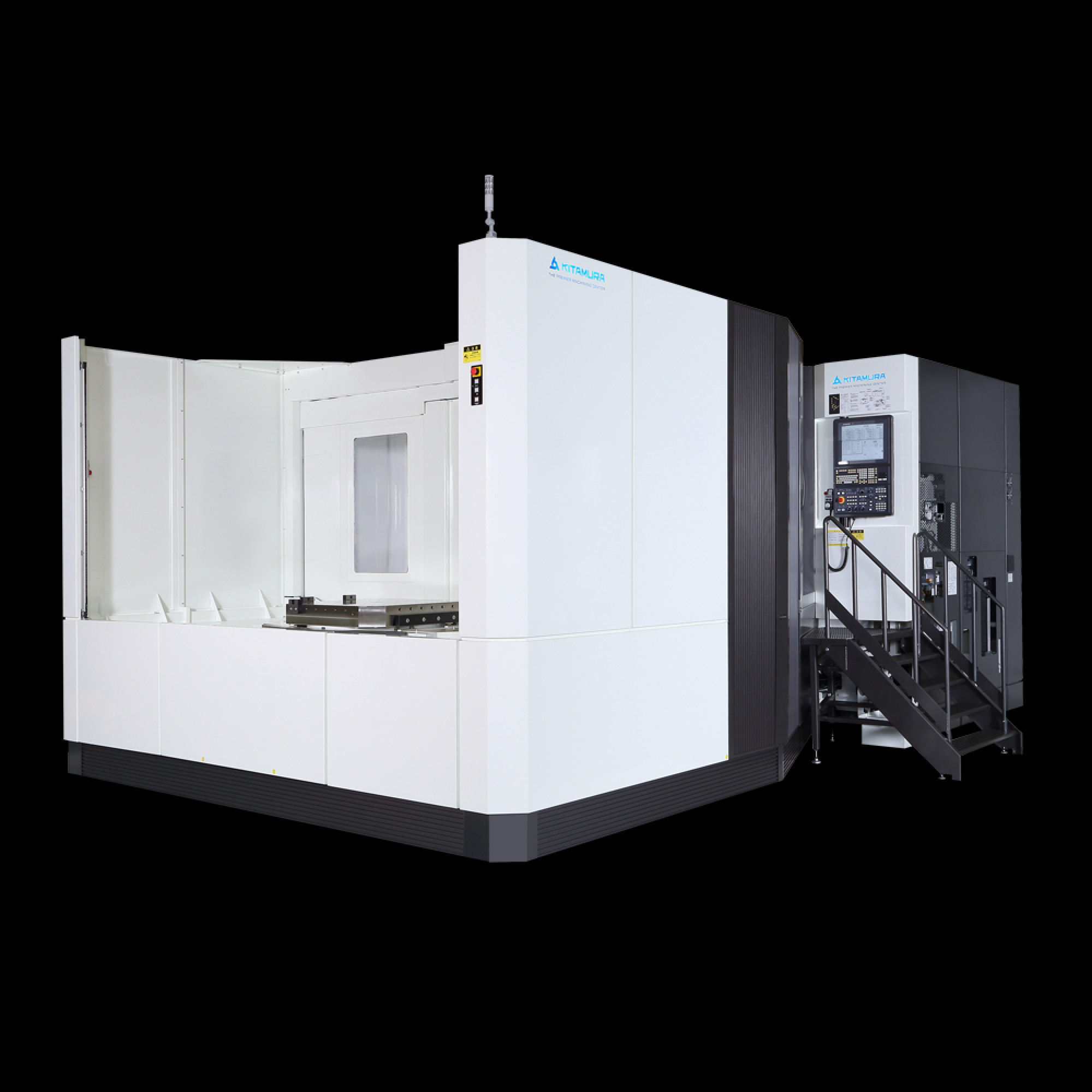

Mycenter-HX1000G

Horizontal 4-Axis Machining Center

The Mycenter-HX1000G horizontal machining center delivers high-power, high-precision cutting for oversized workpieces, even under the most demanding conditions.

Specifications

Table Size
(1000 x 1000mm) 39.4″ x 39.4″
Travel (X, Y, Z)
(2040 x 1350 x 1370mm) 80.3″ x 53.1″ x 53.9″
Spindle Taper
NST No. 50
Spindle Speed
35~8,000 min‾¹ **12,000 min‾¹ Option
4-Step Gear Driven
Tool Storage Capacity
150 Pcs. – 200 Tools Optional
Tool Change Time
(T-T/C-C)
6.7 Sec. /12 Sec. Minimum
Rapid Feed (X,Y,Z)
36m/min (1,417ipm)
Rapid Feed (B)
11.1 min‾¹ (4,000deg./min)
Power Requirement
85KVA, 200v AC, 3 Phase

Product Detail

With travels of (X) 80.31”, (Y) 53.1”, (Z) 53.9”, and a maximum work piece diameter of 80.7” x 61” high, the Mycenter-HX1000G’s superior in house, induction hardened box way design offers the rigidity, size and precision necessary for industries such as Aerospace, Heavy Construction, Oil Field Machining, Automotive and Power Generation where large part machining requires a more expansive work envelope.

Guide ways are equipped with ultra-high precision twin ballscrews and twin servo motors that provide the capability of running speeds of 36,000mm/min (1,417ipm). Linear scale feedback is a standard feature on all axes allowing for unmatched  accuracy. Table size is 1,000mm x 1,000mm (39.37” x 39.37”) allowing for accommodation of huge parts with a standard 2-APC and full 4th axis for the machining from multiple part angles on a single set-up.

control machine white and red logo.

Uniquely Intuitive User Focused CNC Technology

The Arumatik-Mi control’s unique blend of advanced touch-screen icon driven and familiar conventional control technologies make this the CNC of the future. It is easy to use, fully customizable and is loaded with technology to perfect and simplify the user-machine experience.

Learn More

Find a Dealer Near You

Locate trusted experts nearby with just a click!

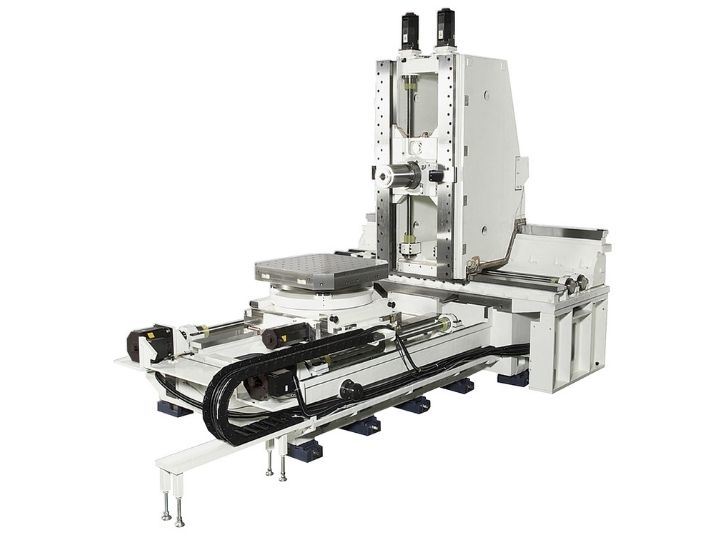

CNC machine frame with a rotary table, linear guides, and ball screw assemblies.

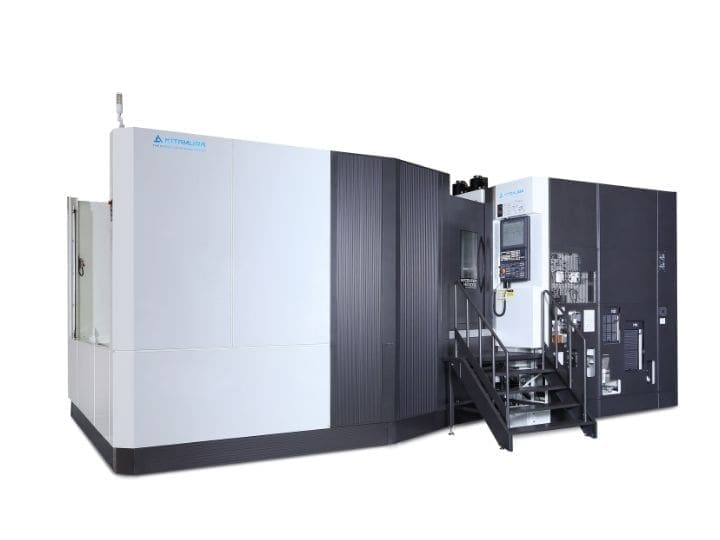

Large Kitamura CNC machine with an enclosed workspace and elevated control panel.

Productivity Enhancing Features

  • Expansive work envelope. 2,0505mm (87”) Diameter x 1,550mm (61”) High
  • Patented Twin Ballscrew and Dual Feedback Technology in X/Y/Z axis with 67 million pulse encoder and scale feedback in all axes
  • Positioning Accuracy: ±0.002mm (±0.000079”)/Full Stroke,
    Repeatability ±0.001mm (±0.000039”)
  • 2APC with high-speed full 4th axis rotary table.
  • Ultra-high-speed processing Arumatik-Mi CNC with Super Smooth Surface control
  • High torque 8,000rpm, 4-step gear driven, dual contact spindle – Optional 12,000rpm high speed spindle available
  • 150T, fixed pot ATC system. Optional 200 tools available.
  • High speed 36m/min (1,417ipm) rapid feed rates on SOLID BOX WAYS.
