Mycenter-3020G “Sparkchanger”

Vertical 3-Axis Machining Center

When maximum production is paramount, the Mycenter-3020G Sparkchanger vertical machining center delivers the combination of a high-speed 180-degree rotating pallet changer and lightning-quick tool changes.

Specifications

Table Size
(500 x 860mm) 19.7″ x 33.9″
2-Station Automatic Pallet Changer
Travel (X, Y, Z)
(762 x 510 x 510mm) 30″ x 20.1″ x 20.1″
Spindle Taper
NST No. 40
Spindle Speed
20~20,000 min‾¹, 4-Step Gear Driven
Tool Storage Capacity
30 Pcs.
Tool Change Time
(T-T/C-C)
2.4 Sec. /4.6 Sec. Minimum
Rapid Feed (X,Y,Z)
50m/min (1,969ipm) x 36m/min (1,417ipm)
Power Requirement
30KVA, 200v AC, 3 Phase

Product Detail

Ideal for Small to Medium Size Part Machining.

Don’t be fooled by the compact design of the Mycenter-3020G”Sparkchanger” vertical machining center.  This VMC is designed to deliver maximum performance with a lightning-quick 180 degree rotating 2-pallet system.  For optimum performance and time savings, operators can load/unload pallets even while machining.  Solid box ways on X,Y axes, high speed rapids of 1,969 (X&Y), 1,417 (Z) and a high speed 20,000rpm 4-step gear driven, dual contact spindle boost work throughput.

Ballscrew cooling and IAC system work together to deliver superb accuracies.  Internal chip augers coupled with wash and shower coolant and a double decker style chip conveyor/filtration system keep the machine free of chips for your high-volume production requirements.

control machine white and red logo.

Uniquely Intuitive User Focused CNC Technology

The Arumatik-Mi control’s unique blend of advanced touch-screen icon driven and familiar conventional control technologies make this the CNC of the future. It is easy to use, fully customizable and is loaded with technology to perfect and simplify the user-machine experience.

Learn More

Find a Dealer Near You

Locate trusted experts nearby with just a click!

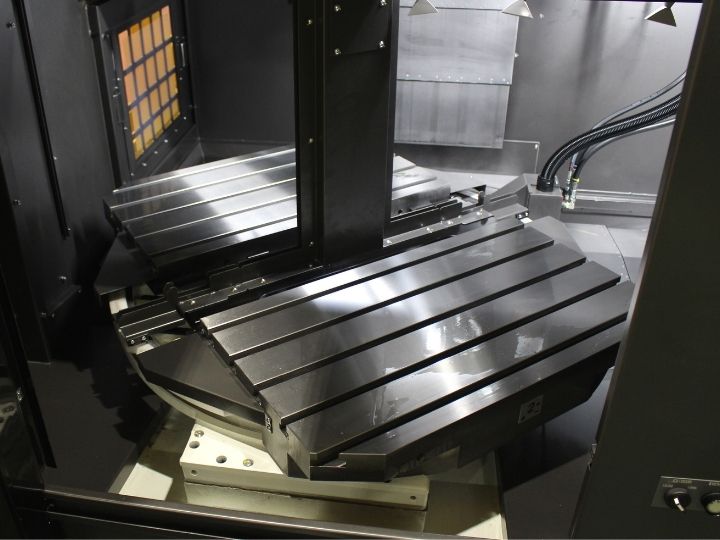

CNC machine workspace with a tilting metal worktable and precision guide rails.

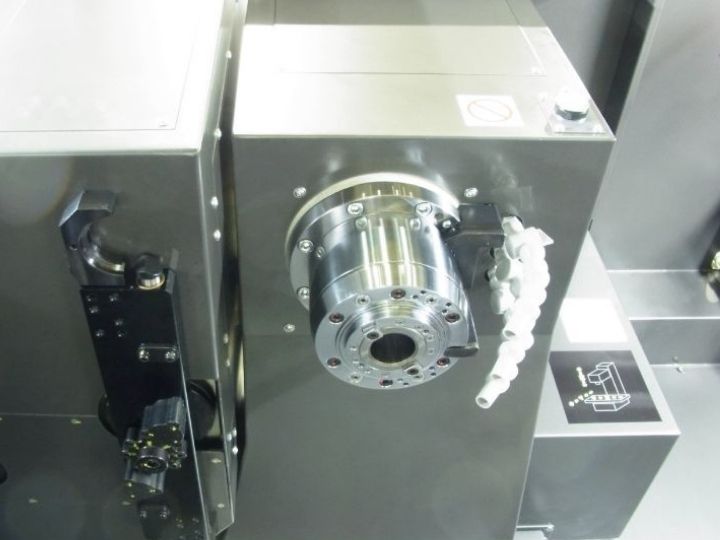

CNC machine spindle with an empty tool holder and coolant nozzles.

Productivity Enhancing Features

  • 180 degree rotating 2-station APC for high production requirements
  • Ideal for heavy duty cutting of molds to the high-speed accuracy cutting for high precision parts
  • Positioning Accuracy: ±0.001mm (±0.000079”)/Full Stroke,
    Repeatability ±0.0005mm (±0.000039”)
  • Rigid Meehanite casting with solid box ways on X & Y axes
  • High torque 20HP AC, 20,000rpm 4-steap gear driven, dual contact spindle
  • Plumbed and ready for coolant thru the spindle – can be added in field
  • Arumatik-Mi CNC with High speed, high accuracy control/8,190 block look ahead speeds
  • Flexibility to add 4th or 5th axis interface in the field
