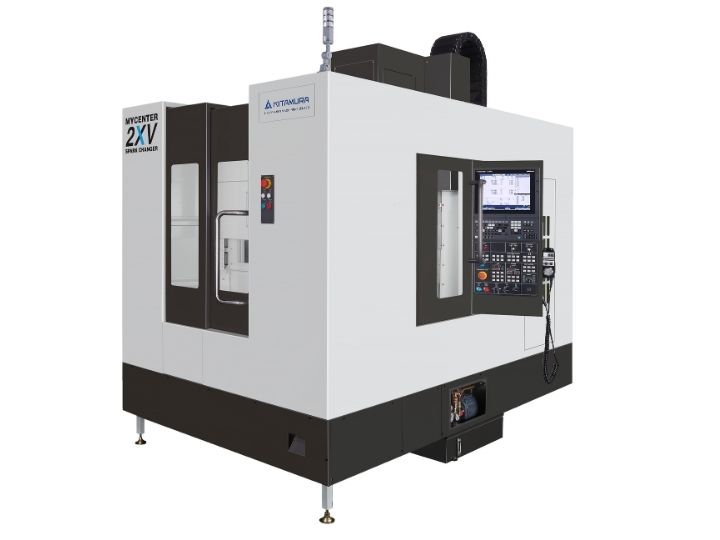

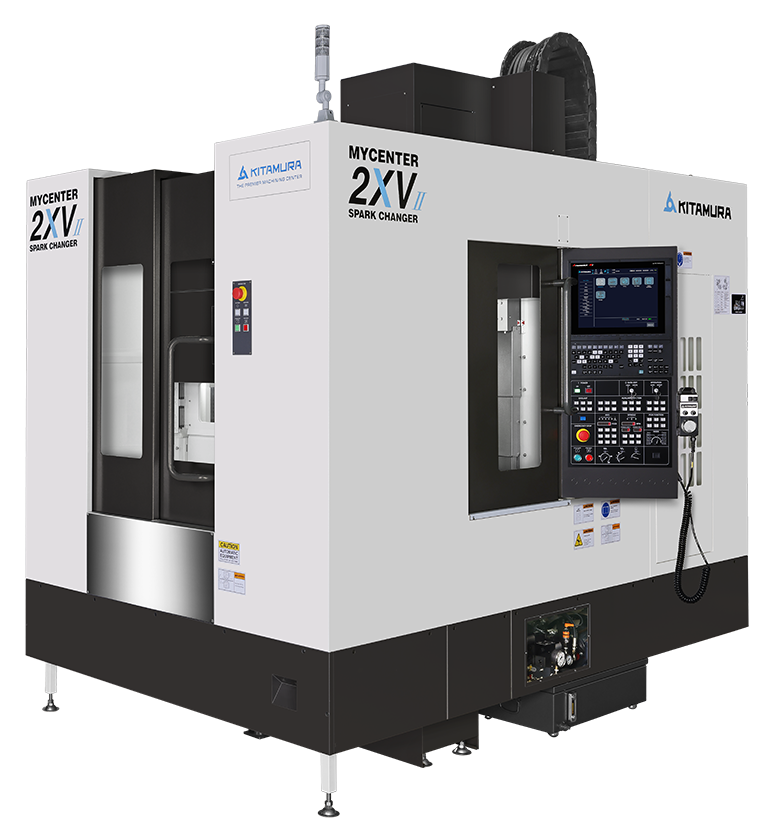

Mycenter-2XV II “Sparkchanger”

Vertical 3-Axis Machining Center

The Mycenter-2XVII Sparkchanger vertical machining center boosts spindle uptime with its high-speed, 2-station pallet changer—ideal for high-volume production demands.

Specifications

Table Size

(400 x 560mm) 15.7″ x 22″
2-Station Automatic Pallet Changer

Travel (X, Y, Z)

(610 x 510 x 510mm) 23.6″ x 20.1″ x 20.1″

Spindle Taper

NST No. 40

Spindle Speed

50~15,000 min‾¹

Tool Storage Capacity

40 Pcs.

Tool Change Time
(T-T/C-C)

2.2 Sec. /4.2 Sec. Minimum

APC Change Time

11.4 Sec.

Rapid Feed (X,Y,Z)

52m/min (2,047ipm) x 42m/min (1,890ipm)

Power Requirement

40KVA, 200v AC, 3 Phase

Product Detail

The Mycenter-2XVII “Sparkchanger” VMC increases spindle up-time with a high-speed 2-station automatic pallet changer. Designed to allow for load and unload of workpieces when the machine is in cycle, Kitamura “Sparkchangers” offer factory designed & built APC units. Full integration of the pallet changer results in the ultra-compact, space-saving footprint.

The 40-Tool magazine carries plenty of tools for the completion of complex, multi-fixtured work pieces in one set-up. A powerful, high-speed 41HP, 15,000rpm dual contact spindle runs low to high rpm for a variety of operations and materials. Kitamura’s Arumatik-Mi Pro CNC is loaded with advanced features and high-speed processing functions that are designed to simplify and streamline operations.

Uniquely Intuitive User Focused CNC Technology

The Arumatik-Mi control’s unique blend of advanced touch-screen icon driven and familiar conventional control technologies make this the CNC of the future. It is easy to use, fully customizable and is loaded with technology to perfect and simplify the user-machine experience.

Learn More

Find a Dealer Near You

Locate trusted experts nearby with just a click!

Locate Now

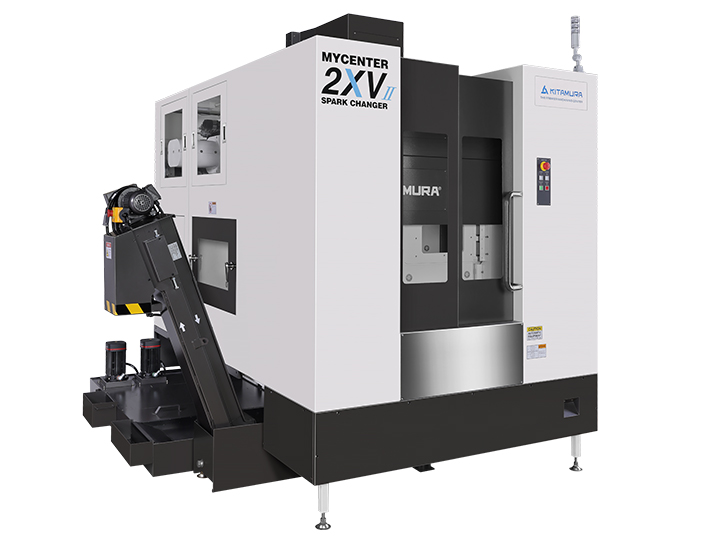

Kitamura Mycenter 2XVII CNC machine with an enclosed workspace and control panel.

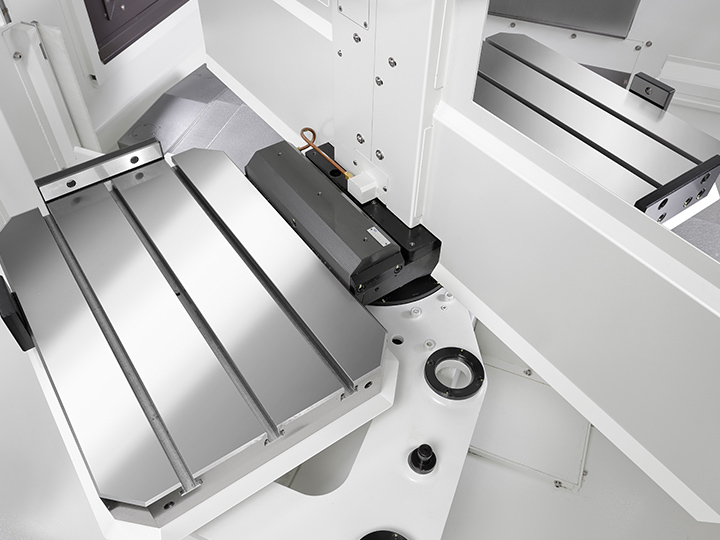

CNC machine tilting worktable with red arrows indicating rotational movement.

Productivity Enhancing Features

Ideal for machining small to medium sized work pieces

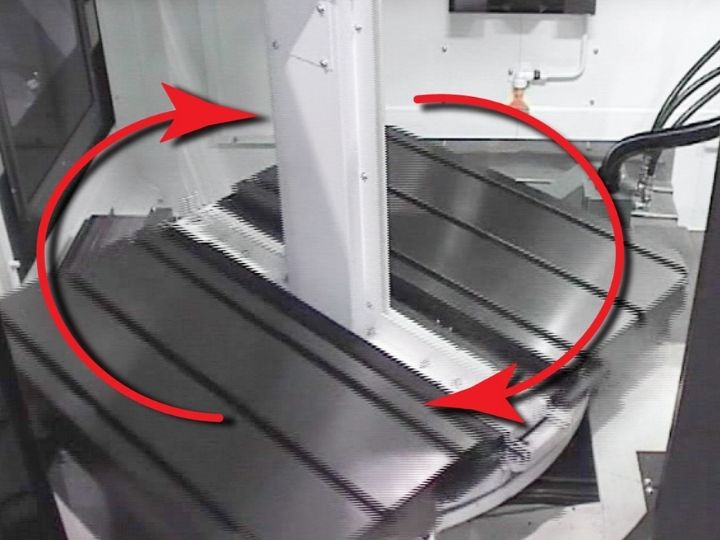

Integrated 2-station 180° rotating pallet system housed in an incredibly small footprint
Positioning Accuracy: ±0.002mm (±0.000079”)/Full Stroke,
Repeatability ±0.001mm (±0.000039”)
IAC System 1 thermal compensation system

Ultra-high-speed processing Arumatik-Mi Pro CNC offers up to 16 x faster processing speeds
Powerful #40, 41HP, 15,000rpm built-in spindle offers high speeds and heavy-duty cutting capabilities
High capacity 40 tool ATC
Set & inspect on machine probing app ready to use with Renishaw probe system.
