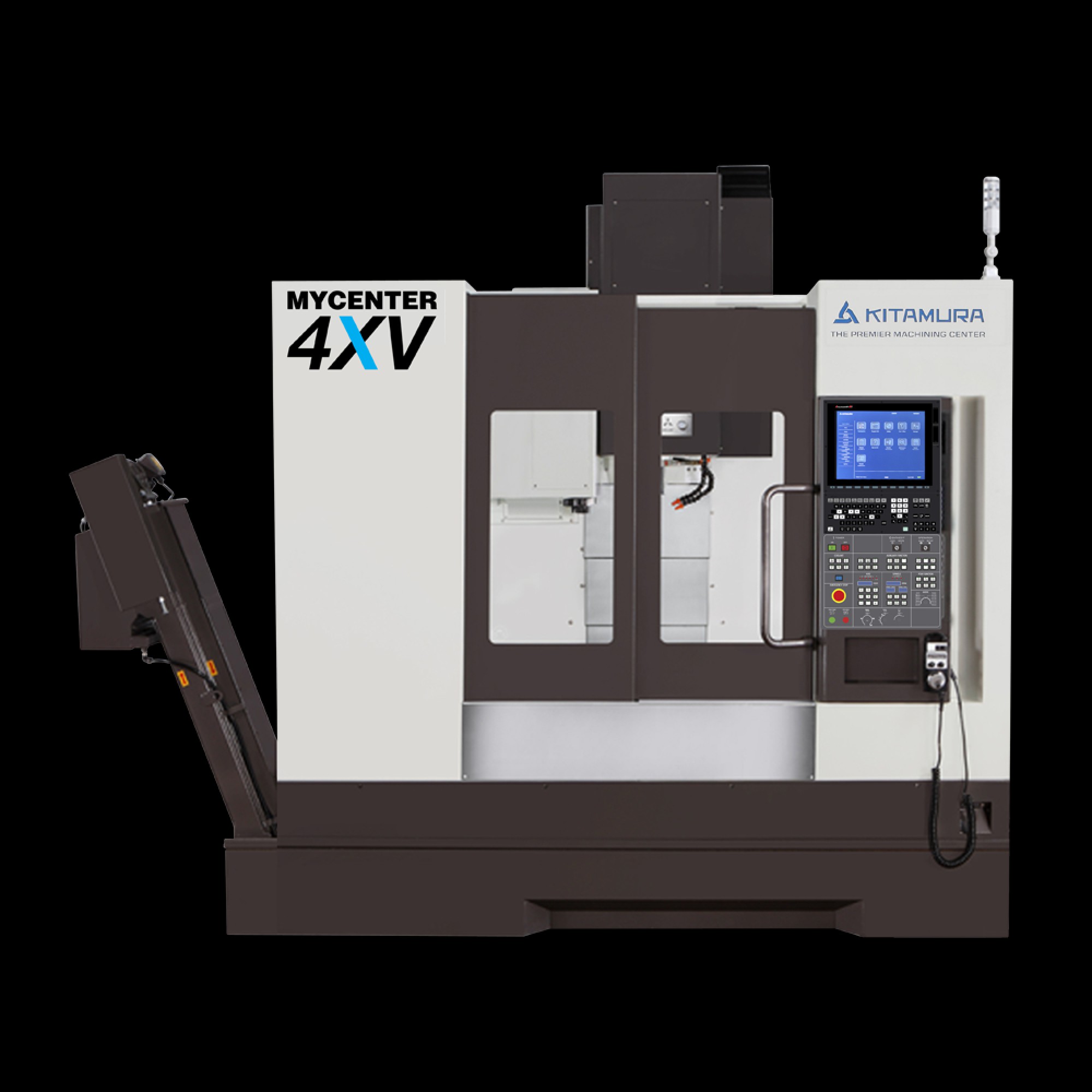

Mycenter-4XV II

Vertical 3-Axis Machining Center

Unlock precision and power with Kitamura’s XVII-Series Vertical Machining Centers. The space saving Mycenter-4XVII is engineered for high-level accuracies, rock-solid durability, and long-term reliability

Specifications

Table Size

(510 x 1120mm) 19.7″ x 44.1″

Travel (X, Y, Z)

(1020 x 510 x 510mm) 40.2″ x 20.1″ x 20.1″

Spindle Taper

NST No. 40

Spindle Speed

50~15,000 min‾¹

Tool Storage Capacity

40 Pcs.

Tool Change Time
(T-T/C-C)

2.2 Sec. /4.2 Sec. Minimum

Rapid Feed (X,Y,Z)

2,362ipm (60m/min)

Rapid Feed (B)

52m/min (2,047ipm) x 42m/min (1,890ipm)

Power Requirement

40KVA, 200v AC, 3 Phase

Product Detail

Maximize productivity with the Mycenter-4XVII 40″ x 20″ vertical machining center, designed to fit into a compact footprint while delivering unmatched performance. The powerful, high-speed 41HP, 15,000rpm dual contact spindle handles everything from roughing to fine finishing with ease. The high capacity 40-tool ATC minimizes interruptions and setup times, boosting productivity, especially in complex machining processes.

The large, ergonomic work envelope ensures versatility and efficiency. A standard scraper type chip conveyor, coupled with base wash and internal chip augers ensures smooth chip flow. The user friendly, feature-packed Arumatik-Mi Pro CNC control guarantees smoother, faster machining with unparalleled accuracy. Combining power, speed, and capacity, the Mycenter-4XVII is the perfect job shop solution for high precision machining.

Uniquely Intuitive User Focused CNC Technology

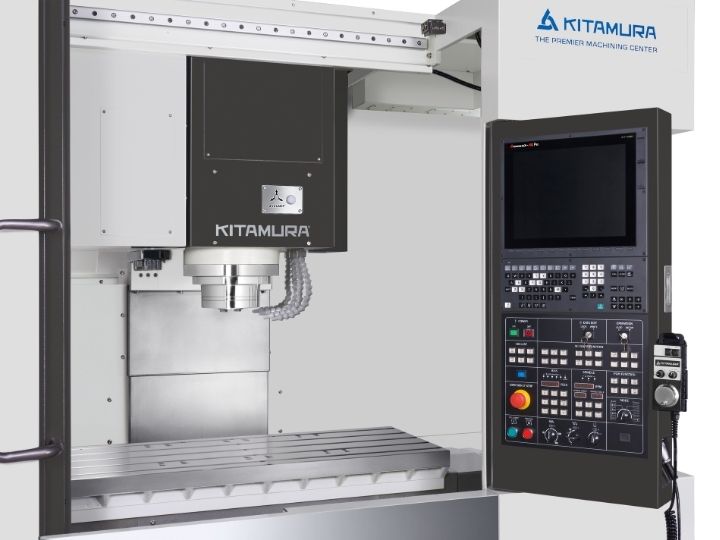

The Arumatik-Mi control’s unique blend of advanced touch-screen icon driven and familiar conventional control technologies make this the CNC of the future. It is easy to use, fully customizable and is loaded with technology to perfect and simplify the user-machine experience.

Learn More

Find a Dealer Near You

Locate trusted experts nearby with just a click!

Locate Now

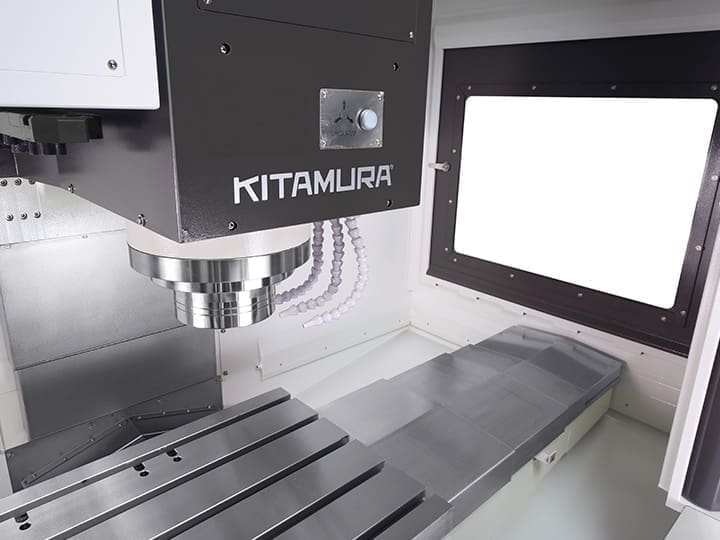

Kitamura CNC machine with a vertical spindle, metal worktable, and control panel.

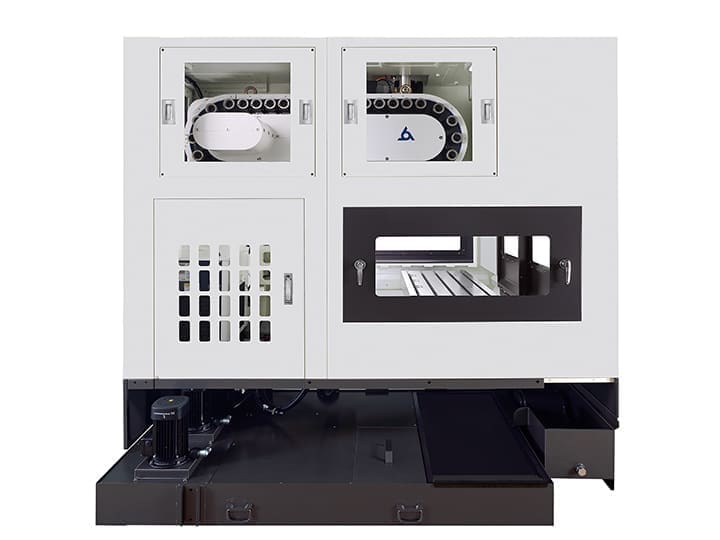

Kitamura Mycenter 4XV CNC machine with an enclosed workspace and control panel.

Productivity Enhancing Features

Class leading 40 tool capacity ATC
Large work envelope housed within a uniquely compact footprint
Positioning Accuracy: ±0.002mm (±0.000079”)/Full Stroke,
Repeatability ±0.001mm (±0.000039”)
IAC System 1 thermal compensation system

Ultra-high-speed processing Arumatik-Mi Pro CNC offers up to 16 x faster processing speeds
Powerful #40, 41HP, 15,000rpm built-in spindle offers high speeds and heavy-duty cutting capabilities

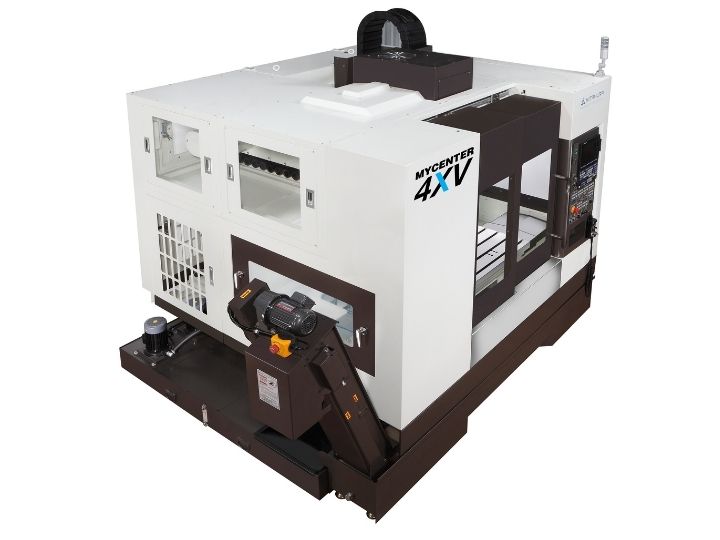

Scraper type chip conveyor can be installed on either right- or left-hand side of the machine
Set & inspect on machine probing app ready to use with Renishaw probe system
