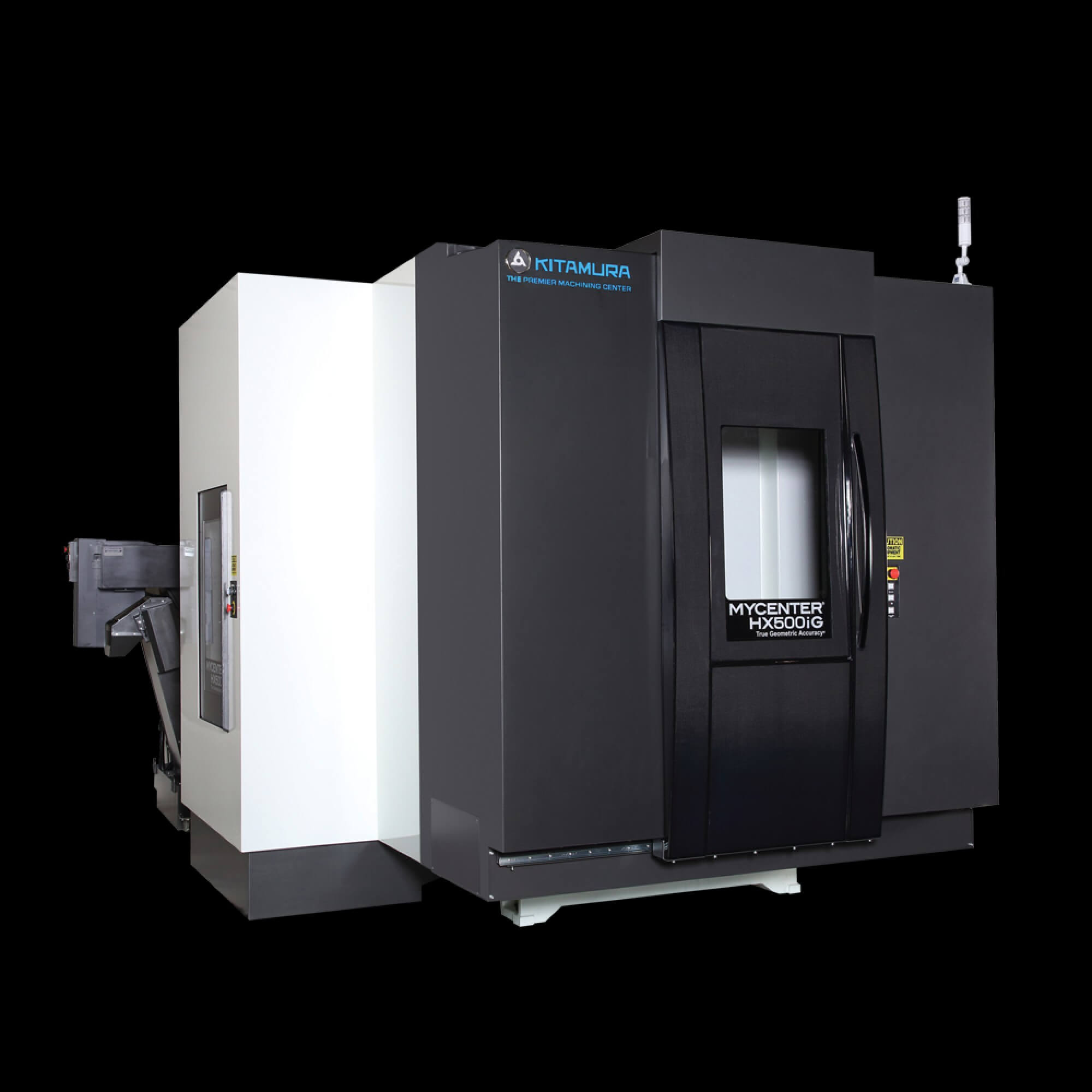

Mycenter-HX500iG/630 #40

Horizontal 4-Axis Machining Center

Highly efficient and productive with your choice of #40, 20,000rpm and #50, 12,000rpm Geared spindles, the Mycenter-HX500iG/630 HMC provides the power, size and speed to handle your larger and heavier workpieces.

Specifications

Table Size
(500 x 500mm) 19.7″ x 19.7″
Travel (X, Y, Z)
(870 x 800 x 930mm) 34.3″ x 31.5″ x 36.6″
Spindle Taper
NST No. 40 (HSK-A63 Opt.)
Spindle Speed
20~20,000 min‾¹ 4-Step Gear Driven
Tool Storage Capacity
50 Pcs. – 62, 100, 150, 200, 300 Tools Optional
Tool Change Time
(T-T/C-C)
1.3 Sec. /3.8 Sec. Minimum
Rapid Feed (X,Y,Z)
60m/min (2,362ipm)
Rapid Feed (B)
120 min‾¹ (43,200deg./min)
Power Requirement
55KVA, 200v AC, 3 Phase

Product Detail

The right horizontal machining center for large capacity high production precision machining.

Highly efficient and productive with a #40, 20,000rpm 4-step gear driven, dual contact spindle, the Mycenter-HX500iG/630 #40 offers the power, speed and size to handle your larger and heavier work pieces. Solid box way construction, scales on all axes and a twin ballscrew design in the X & Y axes offer the highest accuracy levels available on the market today along with the speed to remove large amounts of material and the rigidity necessary for true, heavy-duty, medium to large part cnc machining.

Automation ready, with the ability to add modular pallet and tool systems in the field for non-stop production.

control machine white and red logo.

Uniquely Intuitive User Focused CNC Technology

The Arumatik-Mi control’s unique blend of advanced touch-screen icon driven and familiar conventional control technologies make this the CNC of the future. It is easy to use, fully customizable and is loaded with technology to perfect and simplify the user-machine experience.

Learn More

Find a Dealer Near You

Locate trusted experts nearby with just a click!

CNC machine workspace with a rotary table and spindle equipped with a cutting tool.
CNC machine dual servo motors with ball screw drives and linear rails.

Productivity Enhancing Features

  • Expansive work envelope. 800mm (31.5”) Diameter x 1,100mm (43.1”) High
  • Patented Twin Ballscrew and Dual Feedback Technology in X/Y axis with 67 million pulse encoder and scale feedback in all axes
  • Positioning Accuracy: ±0.001mm (±0.000039”)/Full Stroke,
    Repeatability ±0.0005mm (±0.00002”)
  • 2APC with high-speed 4th axis rotary table, DD motor driven, 43,200deg/min rapids
  • Ultra-high-speed processing Arumatik-Mi CNC with Super Smooth Surface control
  • High speed 20,000rpm, 4-step gear driven, dual contact spindle
  • Optional 8/14/21 APC and additional tool upgrades available – Field expandable!
  • World’s fastest 60m/min (2,362ipm) rapid feed rates on SOLID BOX WAYS.
