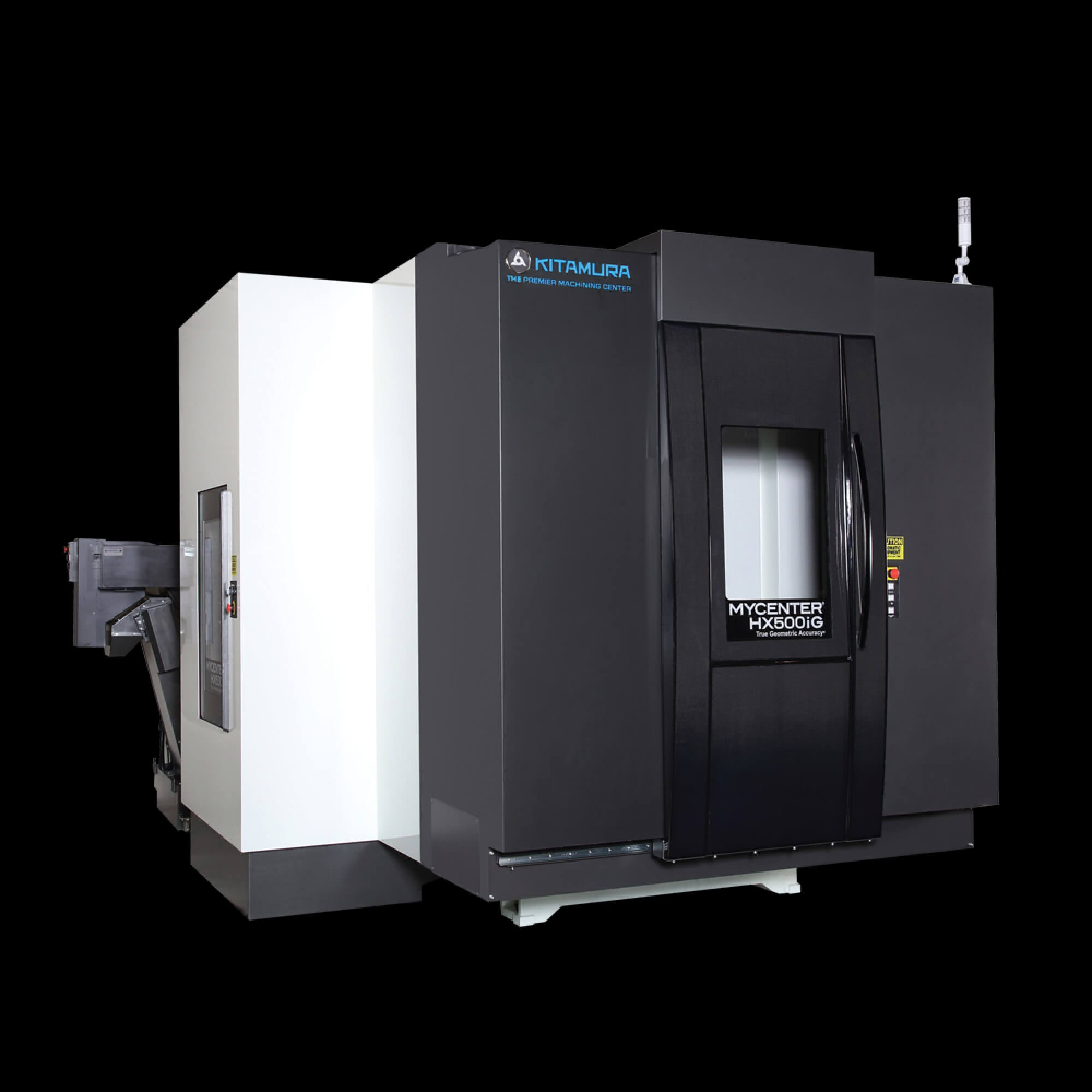

Mycenter-HX500iG/630 #50

Horizontal 4-Axis Machining Center

Highly efficient and productive with your choice of #40, 20,000rpm and #50, 12,000rpm Geared spindles, the Mycenter-HX500iG/630 HMC provides the power, size and speed to handle your larger and heavier workpieces.

Specifications

Table Size

(500 x 500mm) 19.7″ x 19.7″

Travel (X, Y, Z)

(870 x 800 x 930mm) 34.3″ x 31.5″ x 36.6″

Spindle Taper

NST No. 50 (HSK-A100 Opt.)

Spindle Speed

35~12,000 min‾¹ **8,000 min‾¹ Option
4-Step Gear Driven

Tool Storage Capacity

62 Pcs. – 122, 162, 212 Tools Optional

Tool Change Time
(T-T/C-C)

2.1 Sec. /4.8 Sec. Minimum

Rapid Feed (X,Y,Z)

60m/min (2,362ipm)

Rapid Feed (B)

120 min‾¹ (43,200deg./min)

Power Requirement

75KVA, 200v AC, 3 Phase

Product Detail

Precise, rigid construction for large part, high-production CNC machining

If you machine large parts with multiple faces, tough materials, or just want to complete more precision parts in less time, the space saving Mycenter-HX500iG/630 #50 with its extra-large work envelope is your go-to. A powerful 54 HP AC motor coupled with a high-speed/high-torque 12,000rpm 4-step gear driven, dual contact spindle and rock-solid box way construction provide the stability and power necessary for parts that require extensive material removal, are made from difficult to machine alloys or require extensive multi-face machining.

Standard 2-station APC with the ability to add pallet pools in the field and full 4^th axis for the machining of more complex multi-sided parts.

Uniquely Intuitive User Focused CNC Technology

The Arumatik-Mi control’s unique blend of advanced touch-screen icon driven and familiar conventional control technologies make this the CNC of the future. It is easy to use, fully customizable and is loaded with technology to perfect and simplify the user-machine experience.

Learn More

Find a Dealer Near You

Locate trusted experts nearby with just a click!

Locate Now

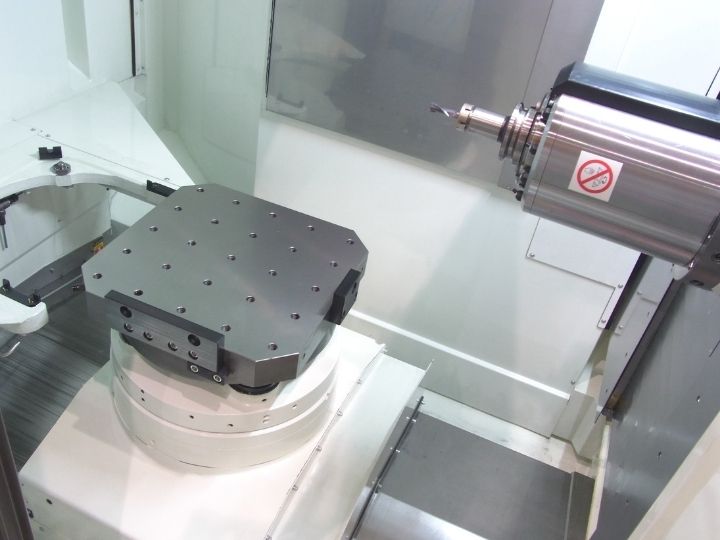

CNC machine workspace with a rotary table and spindle equipped with a cutting tool.

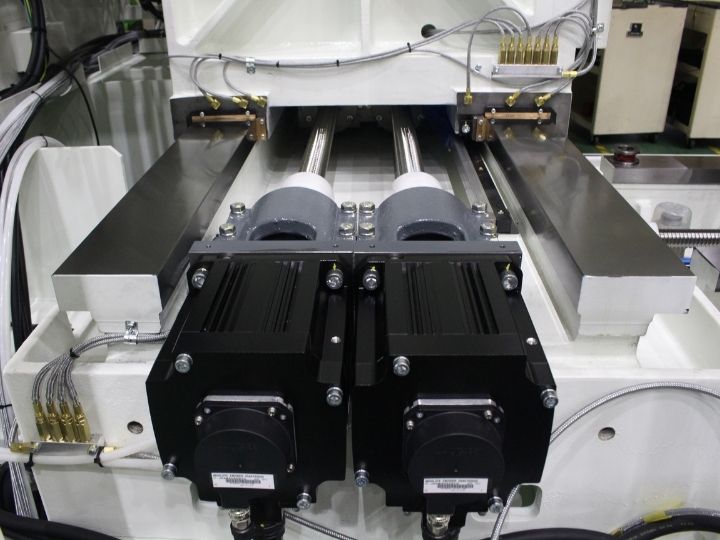

CNC machine dual servo motors with ball screw drives and linear rails.

Productivity Enhancing Features

Expansive work envelope. 800mm (31.5”) Diameter x 1,100mm (43.1”) High
Patented Twin Ballscrew and Dual Feedback Technology in X/Y axis with 67 million pulse encoder and scale feedback in all axes
Positioning Accuracy: ±0.001mm (±0.000039”)/Full Stroke,
Repeatability ±0.0005mm (±0.00002”)
2APC with high-speed 4th axis rotary table, DD motor driven, 43,200deg/min rapids

Ultra-high-speed processing Arumatik-Mi CNC with Super Smooth Surface control
High speed 15,000rpm, 4-step gear driven, dual contact spindle – Optional 8,000rpm high torque spindle available
Optional 8/14/21 APC and additional tool upgrades available – Field expandable!
World’s fastest 60m/min (2,362ipm) rapid feed rates on SOLID BOX WAYS.
