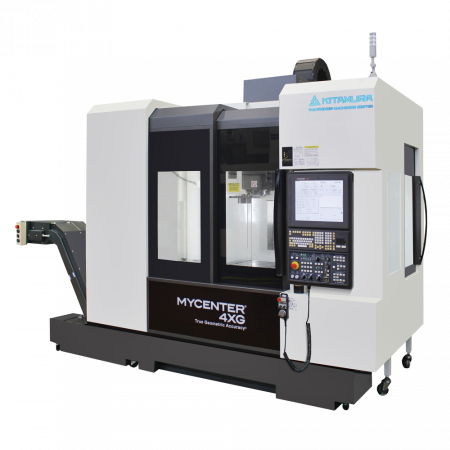

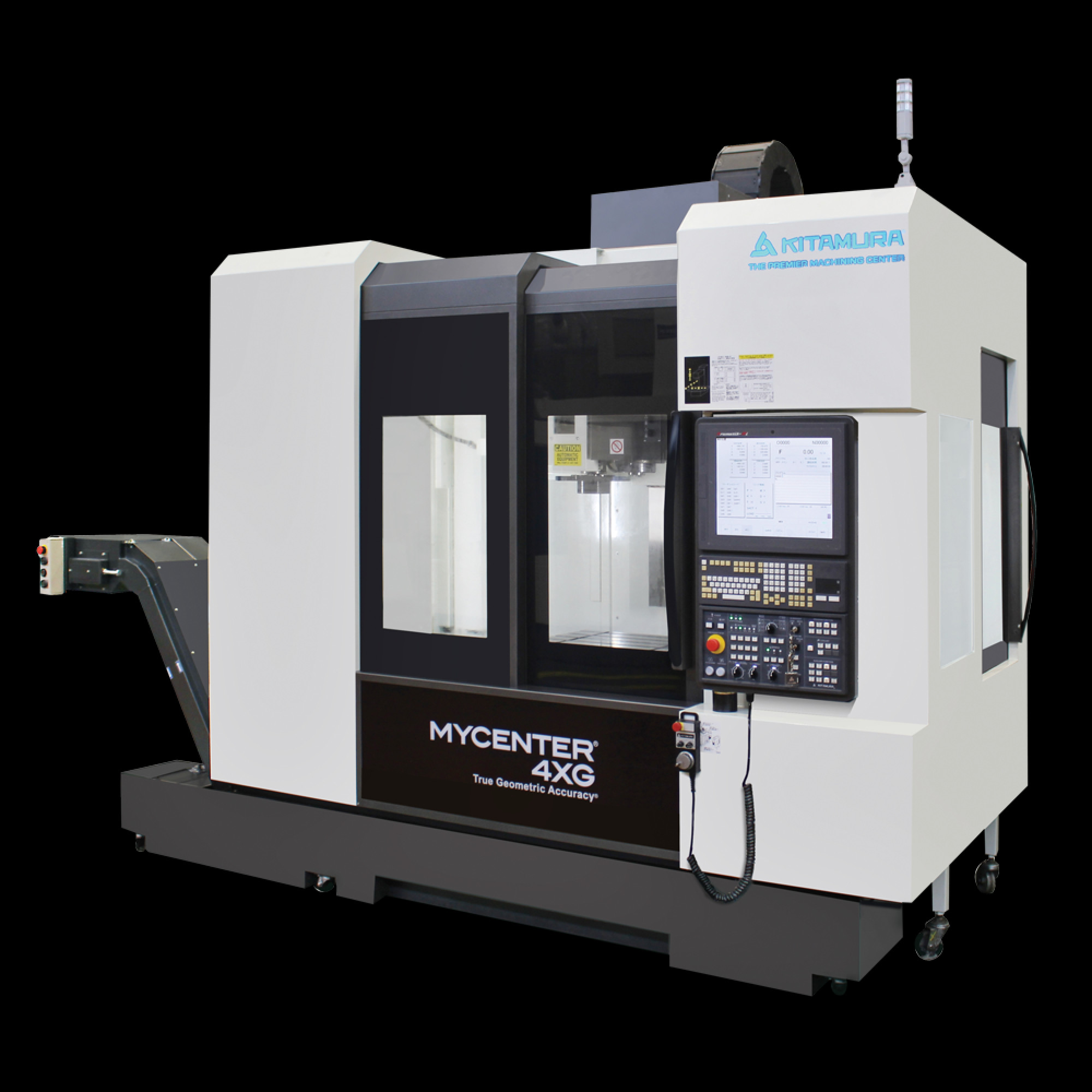

Mycenter-4XG#40
Vertical Machining Center
Specifications
Table Size: 20.6” x 43.3” (522 x 1,100mm)
Travel (X, Y, Z): 41.0” x 20.1” x 20.1”
(1,042 x 510 x 510mm)
Spindle Taper: NST No. 40
Spindle Speed: 20~20,000rpm 4-Step, Gear Driven
Tool Storage Capacity: 40 Pcs. (60 Opt.)
Tool Change Time (T-T/C-C): 1.2 Sec. /4.7 Sec.
Rapid Feed (X, Y x  Z): 1,969ipm (50m/min)  x 1,417ipm (36m/min)
Power Requirement: 35KVA
Features

• Ideal for machining larger size parts and molds

• Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”

• #40, high-speed, heavy duty 20,000rpm, 4-step geared, dual contact spindle

• Rigid Meehanite cast iron construction with in-house induction hardened solid box ways

• Choice of #40 or #50 taper spindles for maximum machining flexibility

• Standard 40-Tool ATC with 60 tools as available options

• Flexibility with the ability to add 4th/5th axis in the field
