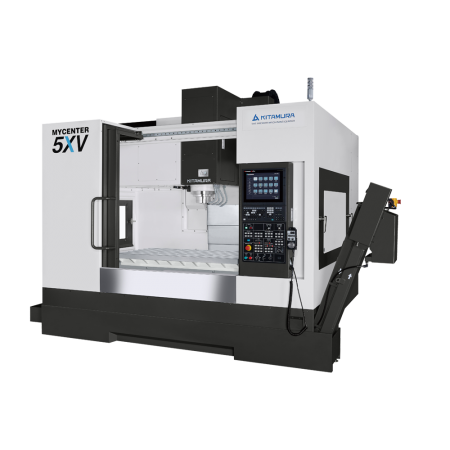

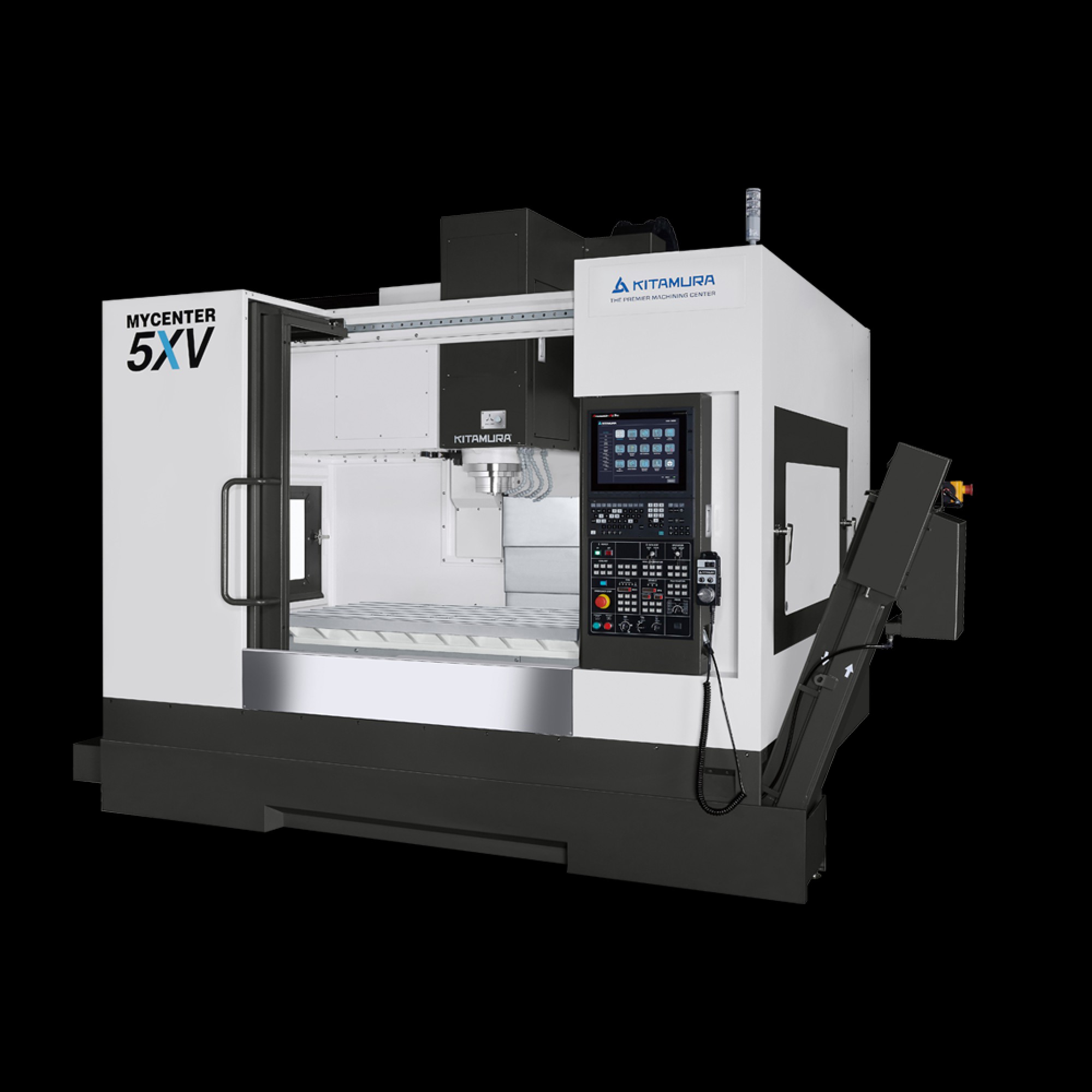

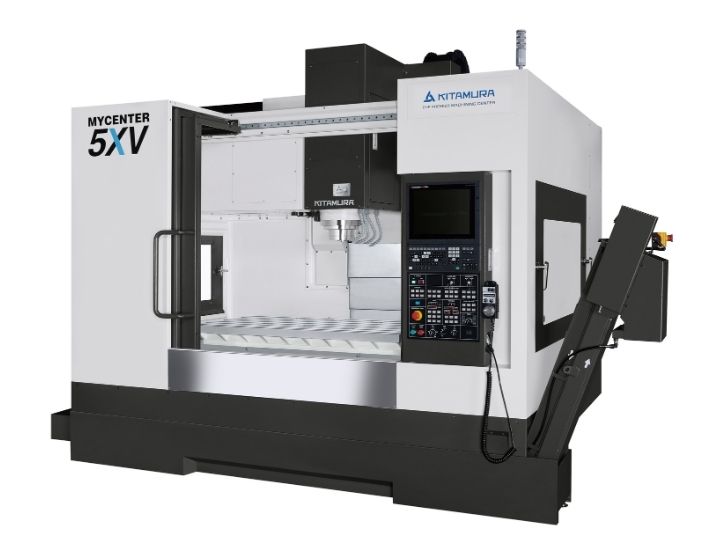

Mycenter-5XV

Vertical 3-Axis Machining Center

Simplify large part machining with the Mycenter-5XV Vertical Machining Center. Compact and precise with expanded table and tool capacity this VMC delivers unmatched quality, strength and durability.

Specifications

Table Size

(700 x 1420mm) 27.6″ x 55.9″

Travel (X, Y, Z)

(1270 x 710 x 635mm) 50″ x 28″ x 25″

Spindle Taper

NST No. 40

Spindle Speed

50~15,000 min‾¹

Tool Storage Capacity

40 Pcs.

Tool Change Time
(T-T/C-C)

2.2 Sec. /4.2 Sec. Minimum

Rapid Feed (X,Y,Z)

52m/min (2,047ipm) x 42m/min (1,890ipm)

Power Requirement

40KVA, 200v AC, 3 Phase

Product Detail

When you need larger capacity but are tight on floor space you can count on the Mycenter-5XV, large capacity Vertical Machining Center. Compact with an expanded 27.6” x 55.9” table and class leading 40 tool ATC to handle your larger components machining requirements, this machine has it all. Powerful, high speed 41HP, 15,000rpm, dual contact spindle, quality structural design and thermal comp for superior accuracy and large ergonomic work envelope ensuring safe load/unload of parts.

An advanced chip management system promotes optimal cutting performance, enhanced surface finished and extended tool life. The high-speed processing Arumatik-Mi Pro CNC is easy to use and offers a groundbreaking fusion of cutting-edge touch screen technology and traditional control methods.

Uniquely Intuitive User Focused CNC Technology

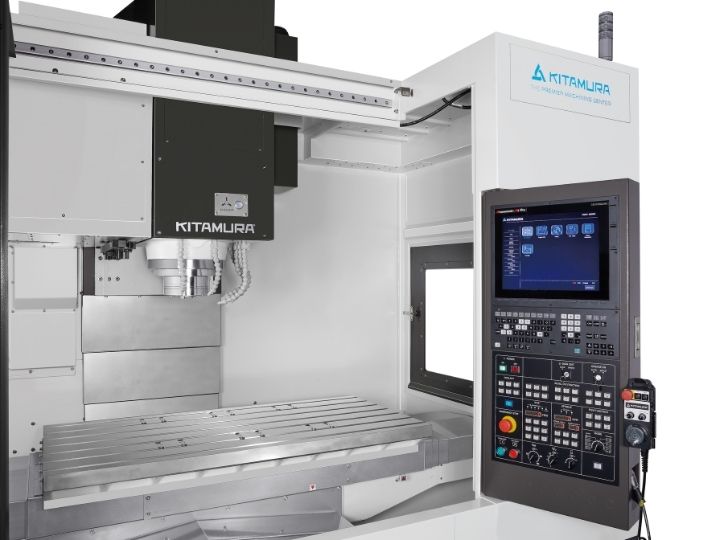

The Arumatik-Mi Pro CNC Controller blends advanced touch-screen technology with familiar controls for a user-friendly, customizable experience. Designed for high-speed machining, it delivers up to 16x faster processing, maximizing efficiency and productivity.

Learn More

Find a Dealer Near You

Locate trusted experts nearby with just a click!

Locate Now

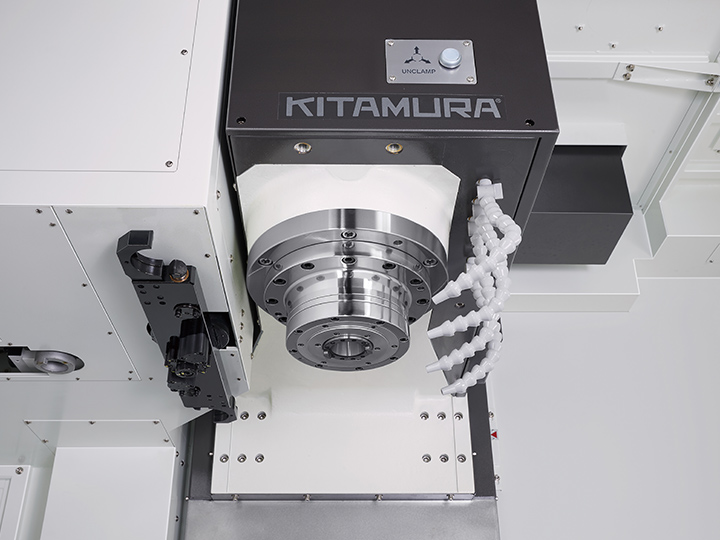

Kitamura CNC machine with a large worktable, vertical spindle, and control panel.

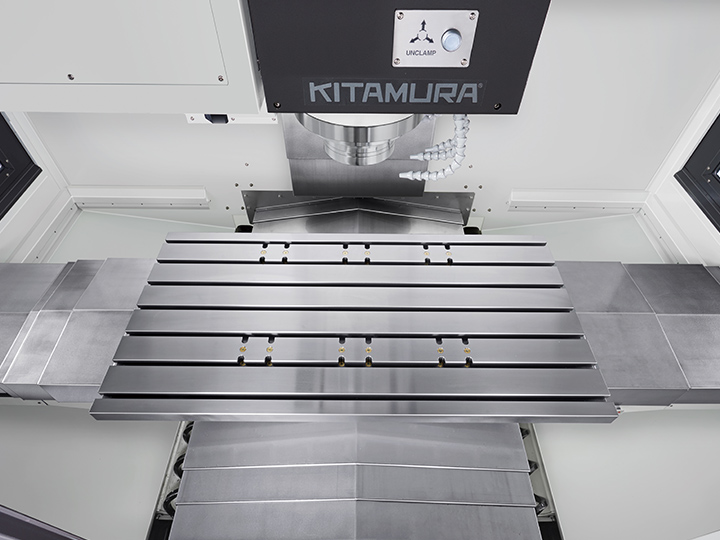

Kitamura Mycenter 5XV CNC machine with a large enclosed workspace and control panel.

Productivity Enhancing Features

Extended travels (X) 1,270mm (50.0”), (Y) 710mm (28.0”), (Z) 635mm (25.0”)
Large work envelope housed within a uniquely compact footprint
Positioning Accuracy: ±0.002mm (±0.000079”)/Full Stroke,
Repeatability ±0.001mm (±0.000039”)
IAC System 1 thermal compensation system

Ultra-high-speed processing Arumatik-Mi Pro CNC offers up to 16 x faster processing speeds
Powerful #40, 41HP, 15,000rpm built-in spindle offers high speeds and heavy-duty cutting capabilities
Class leading 40 tool capacity ATC
Set & inspect on machine probing app ready to use with Renishaw probe system
