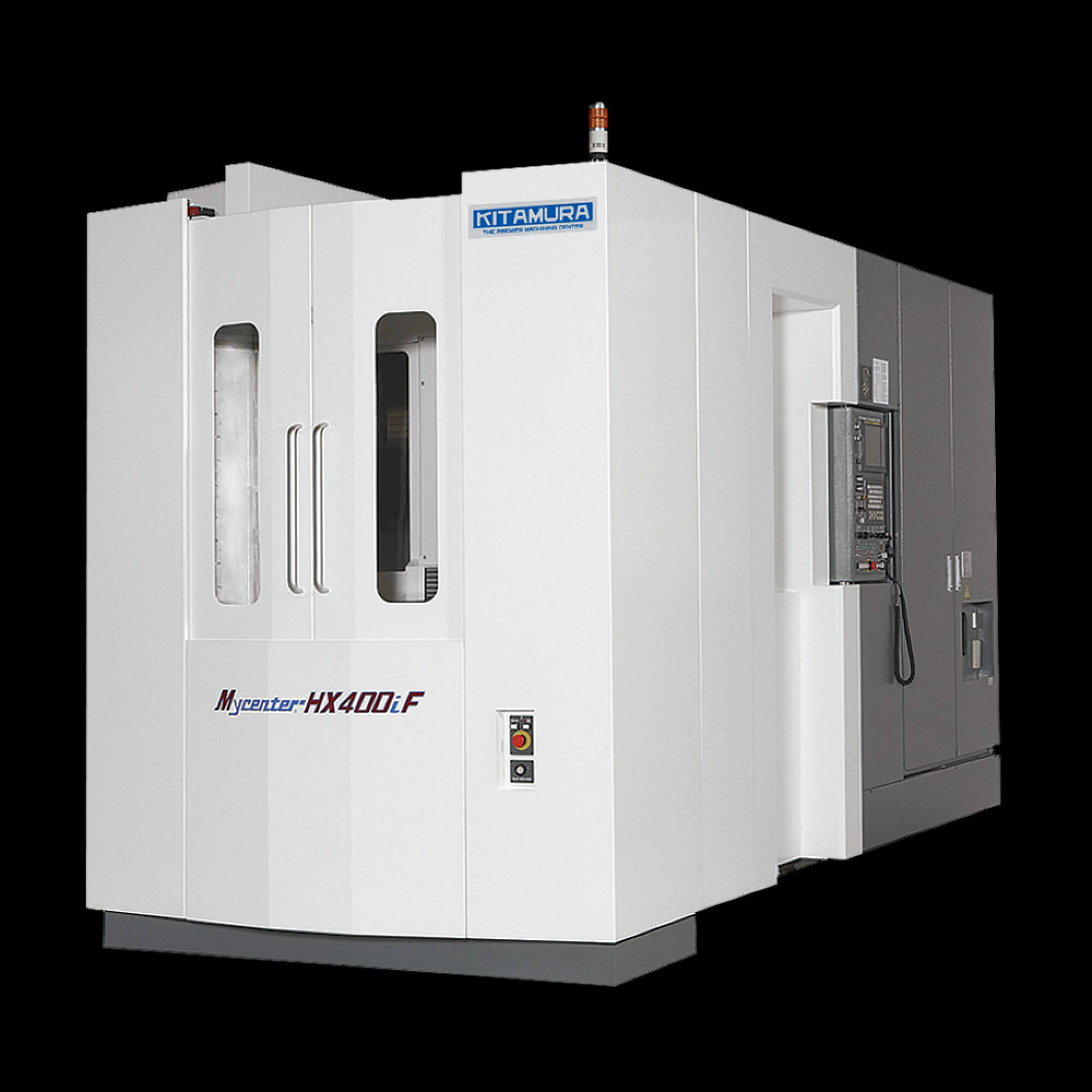

Horizontal Machining Center
Table Size: 15.7” x 15.7” (400 x 400mm)
Travel (X, Y, Z): 28.9” x 24” x 24”
(735 x 610 x 610mm)
Spindle Taper: NST No. 40
Spindle Speed: 35~13,000rpm (20,000rm Opt.) – Gear Drive, 4-Step
Tool Storage Capacity: 50 Pcs. (100,150,200 Opt.)
Tool Change Time
1.0 Sec. /3.2 Sec.
Rapid Feed (X,Y,Z)
Rapid Feed (B)
1,969ipm (50m/min)
Power Requirement: 50KVA

• Highest grade meehanite cast iron construction with solid box ways

• Full 4th axis rotary table with high resolution rotary scale

• Double decker style chip conveyor & internal hinge belt for exceptional chip evacuation

• 13,000rpm, gear driven dual contact spindle generates strong low end torque with fine finish capabilities

• Patented twin ballscrew/twin servo motor driven axis drive system

• Extra-large work envelope. Work piece diameter 25.6” (650mm) x height 37.8” (960mm)

• 2-station APC and 50 tool ATC – Both expandable in the field
