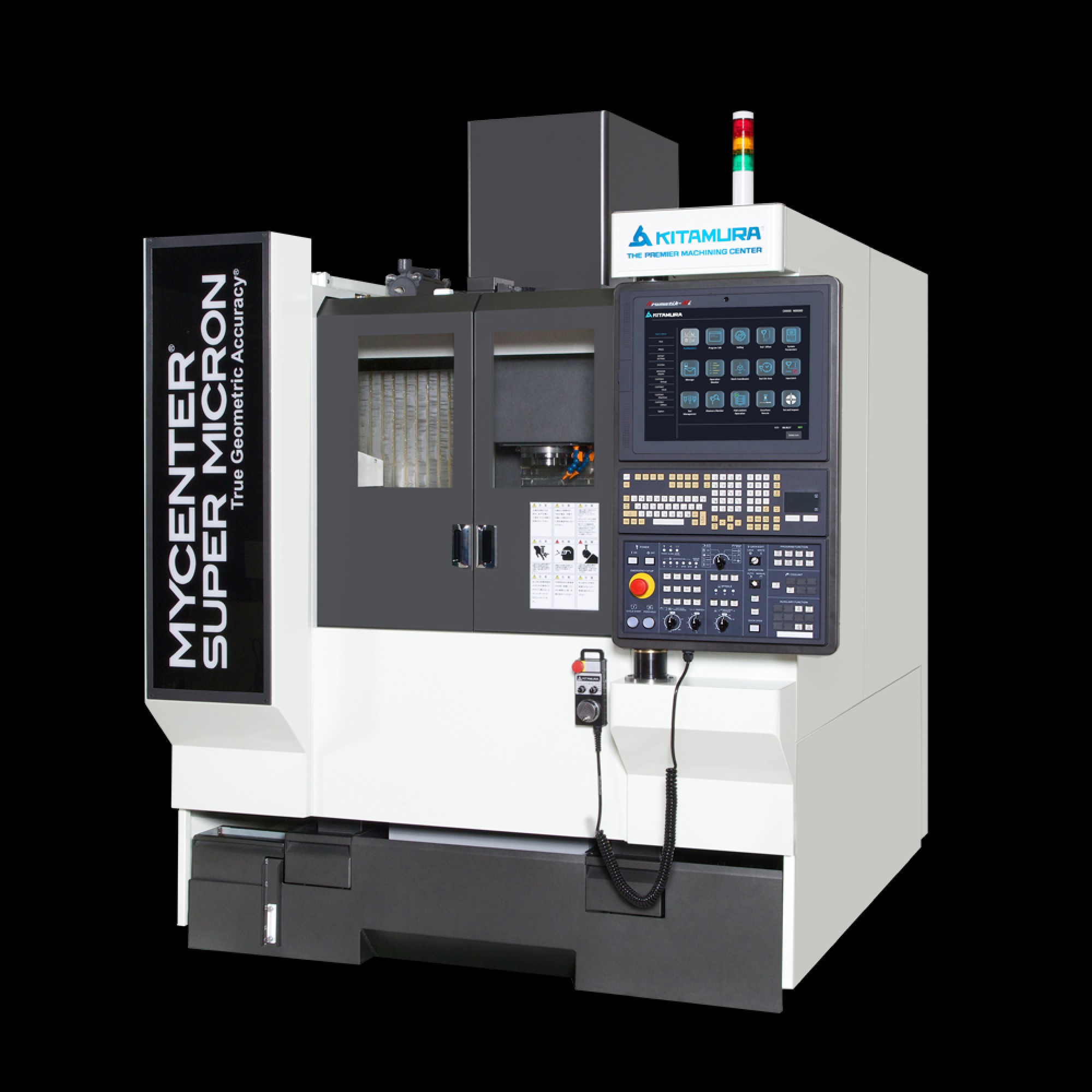

Mycenter-Super Micron

Vertical 3-Axis Machining Center

The Mycenter-Super Micron is an ultra-high precision vertical machining center perfectly suited for high precision, heavy cutting applications requiring smoother, more accurate surface finishes.

Specifications

Table Size
(400 x 500mm) 15.7″ x 19.7″
Travel (X, Y, Z)
(450 x 350 x 300mm) 17.7″ x 13.8″ x 11.8″
Spindle Taper
HSK-E32
Spindle Speed
40,000 min‾¹
Tool Storage Capacity
18 Pcs.- 40 Tools Optional
Rapid Feed (X,Y,Z)
15m/min (591ipm)
Power Requirement
30KVA, 200v AC, 3 Phase

Product Detail

Expect Superior Finishes and Ultra High Precision

As the only machine in its class utilizing a mirror-finished box way design, the Mycenter Super Micron Vertical Machining Center has been designed with exceptional dampening characteristics and a unique column design that promotes ultra-high thermal rigidity for static accuracy (measured value) positioning +/-0.0005mm (+/-0.00002”)/Full stroke.

Thoughtfully designed, the Mycenter Super Micron vertical machining center is the superior choice for medical/dental, mold/electrodes, hard milling, tool & die and prototype applications that require jig-bore-level accuracies.

control machine white and red logo.

Uniquely Intuitive User Focused CNC Technology

The Arumatik-Mi control’s unique blend of advanced touch-screen icon driven and familiar conventional control technologies make this the CNC of the future. It is easy to use, fully customizable and is loaded with technology to perfect and simplify the user-machine experience.

Learn More

Find a Dealer Near You

Locate trusted experts nearby with just a click!

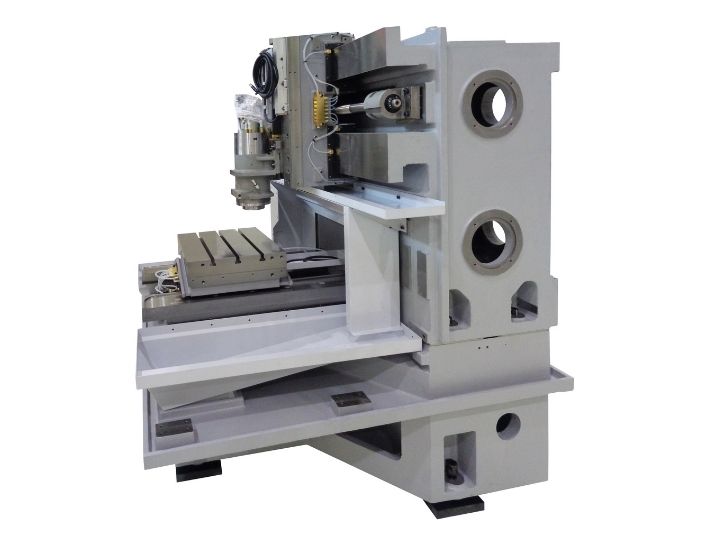

CNC machine frame with an exposed spindle, linear guides, and worktable.

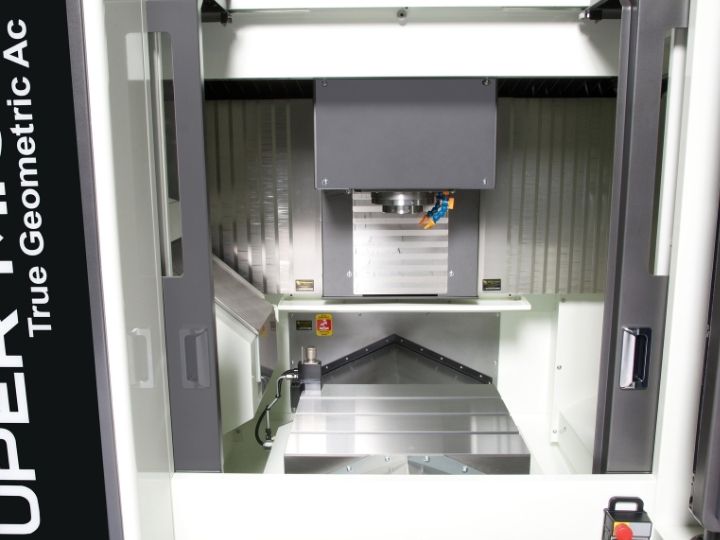

Enclosed CNC machine workspace with a vertical spindle and metal worktable.

Productivity Enhancing Features

  • Ultra-high precision jig borer accuracies ±0.0005mm (±0.00002”)/Full stroke
  • Mirror finished box way construction with thermally stable column design
  • High speed 40,000 HSK-E32 spindle
  • Ideal for medical/dental, mold/electric, hard milling, tool and die and prototype applications requiring jig bore level accuracies
  • Optional graphite package available
  • Heidenhain linear glass scales in all axes
  • Arumatik-Mi CNC with High speed, high accuracy control/8,190 block look ahead speeds
  • 67 milliion pulse servo encoder system for smoother, more accurate surface finishes
