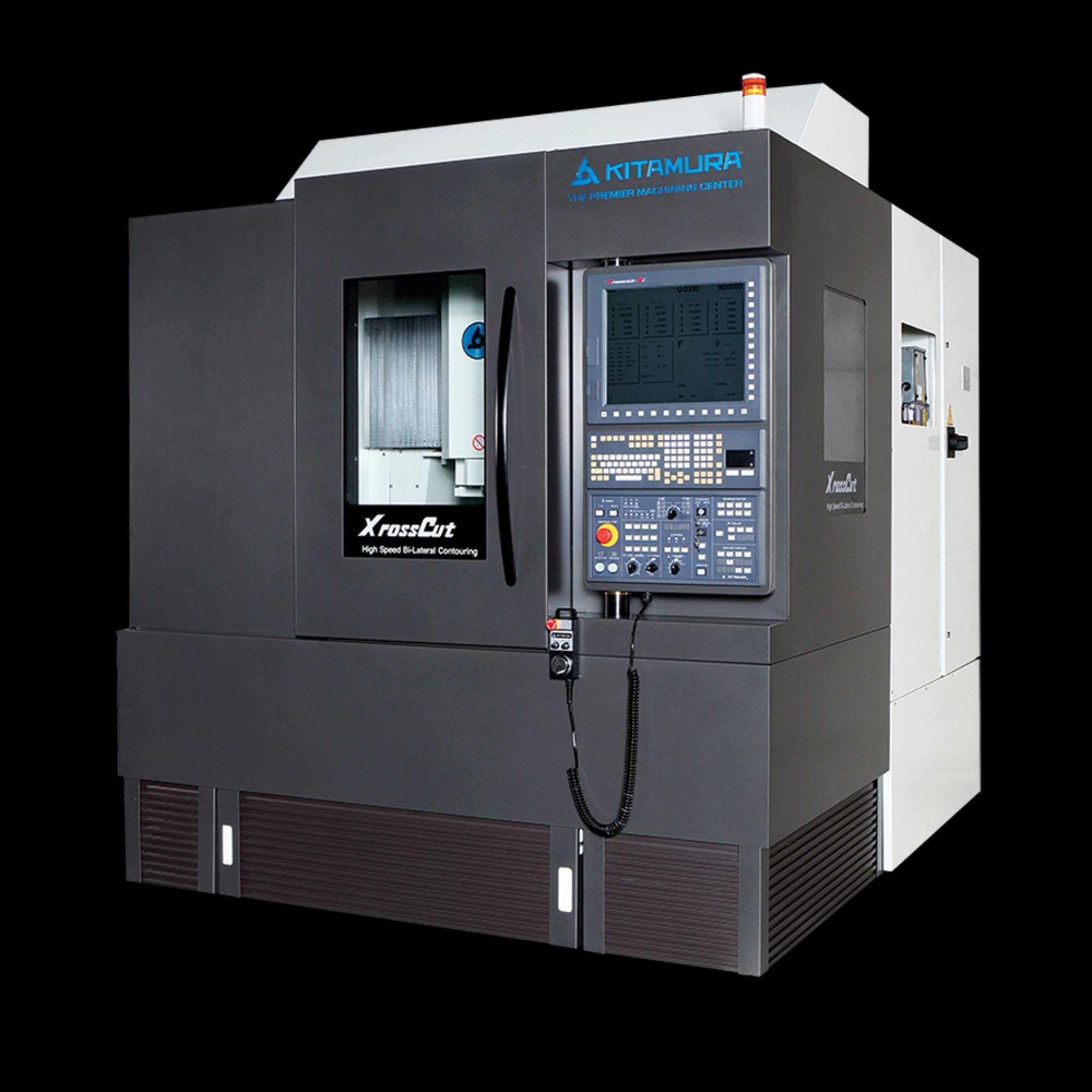

Vertical Reverse Print Machining Center
Table Size: 20” x 24” (510 x 610mm)
Travel (X, Y, Z): 12” x 22” x 14”
(310 x 560 x 350mm)
Spindle Taper: HSK-E25
Spindle Speed: 70,000rpm
Tool Storage Capacity: 5Pcs.
Rapid Feed (X, Y, Z): 4,724 Zoll/min (120m/min) X x 2,362 Zoll/min (60m/min) Y x 1,417 Zoll/min (36m/min) Z
Power Requirement: 20KVA

• Enhanced control capability with Kitamura’s feature packed Arumatik-Mi control

• Reverse 3-D Printing - No programming needed

• Rapid Feeds: X-Axis 120m/min (4,724ipm),Y-Axis 60m/min (2,362ipm), Z-Axis 36m/min (1,417ipm)

• Rigid Meehanite cast iron construction

• Super High-Speed HSK-E25, 70,000rpm built-in spindle

• Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”

• 500kg (1,100Lb.) Table load capacity

• 2,800 block/sec processing speeds for smooth and faster machining of complex work pieces
